3-126-736

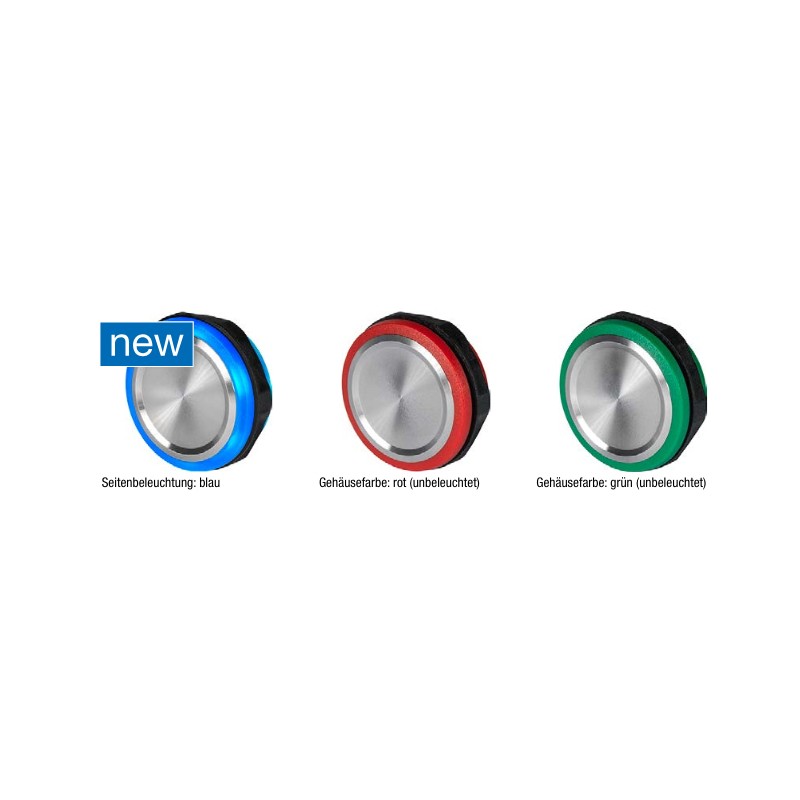

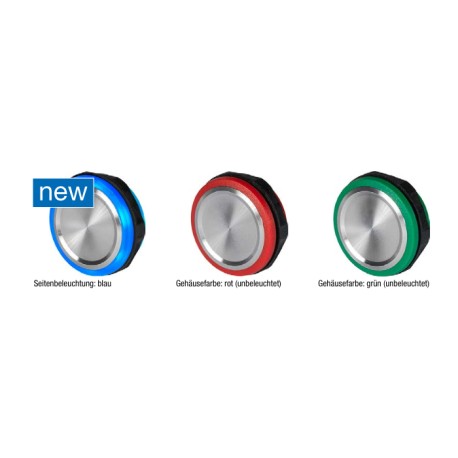

Schurter push button switches series MSS

Push buttons in a stainless steel housing with 1x changeover contacts and a long service life. These momentary switches are available in a lit and a unlit version, they are IP67 rated and have the impact resistance level IK06. They are vandal-proof and varay in their input voltage. We offer various types of this Schurter series.

  • contact: 1x changeover contact
  • housing: PMMA
  • diameter: 19mm, 22mm and 30mm
  • maximal switching voltage: 60V DC
  • switching capacity: 1W
  • isolation resistance: >10MOhm
  • transfer resistance: <20Ohm
  • operating force: 1 to 3N
  • operating temperature: -40 bis +85°C
3-126-736, Schurter push button switches, for Ø19, 22, 30 mm , vandal-proof, IP67, 1x changeover contact, MSS series

3-126-736

246738 3-126-736 3-126-736 Schurter push button switches series MSS. Push buttons in a stainless steel housing with 1x changeover contacts and a long service life. These momentary switches are available in a lit and a unlit version, they are IP67 rated and have the impact resistance level IK06. They are vandal-proof and varay in their input voltage. We offer various types of this Schurter series. contact: 1x changeover contact housing: PMMA diameter: 19mm, 22mm and 30mm maximal switching voltage: 60V DC switching capacity: 1W isolation resistance: &gt;10MOhm transfer resistance: &lt;20Ohm operating force: 1 to 3N operating temperature: -40 bis +85°C

Specifications

manufacturer
Manufacturer's name 3-126-736
Data Sheet

Unit price

27,69 €

Stock: 0
Further delivery:
CW 02/2025

Minimum order quantity 10 units or
multiples of 10.
