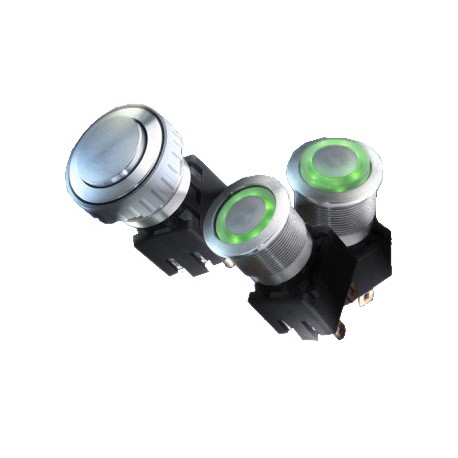

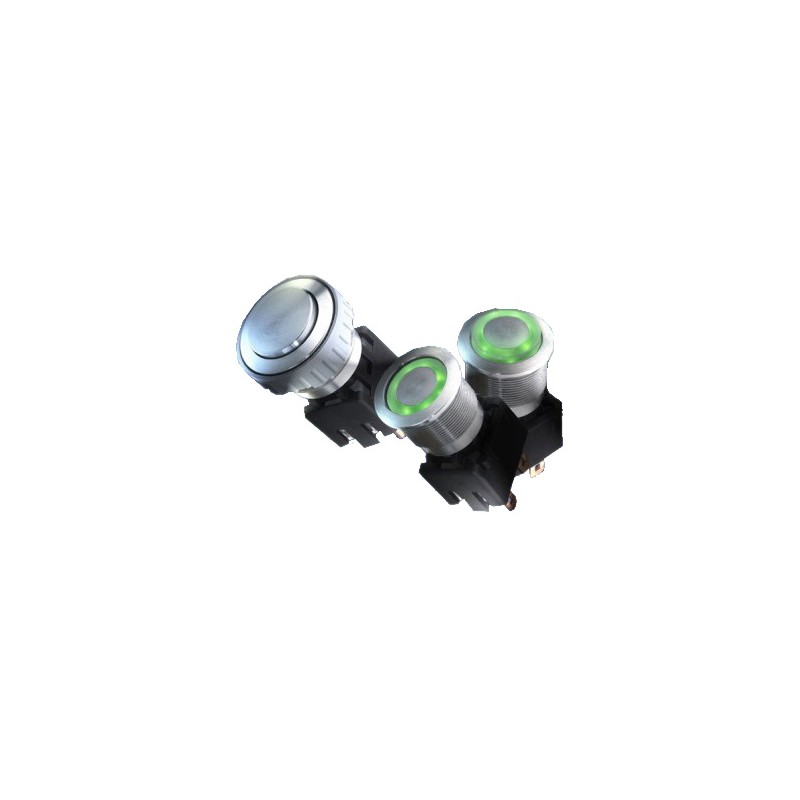

MSM 22 1241.6834.1121000
* contact: DPST-NΩ, latching
* high impact resistance, vandal-proof, IK07
* double pole NΩ latching contact
* easy visual status identification
* for switching voltage up to 250VAC
* very high reability
* ring illuminated or unilluminated
* shell material: stainless steel
* operating material: stainless steel
* material contacts: silver-plated
* switching voltage, max.: 250V AC
* switching current, max.: 12A
* switching capacity, max.: 3000W
* contact resistance: <100mΩ
* bounce time, typ.: <5ms
* operating force: 10N
* operating path: 4.5mm
* operating life/cycles: 50x103
* temperature range: -20...+85°C
* protection class: IP64
* by Schurter

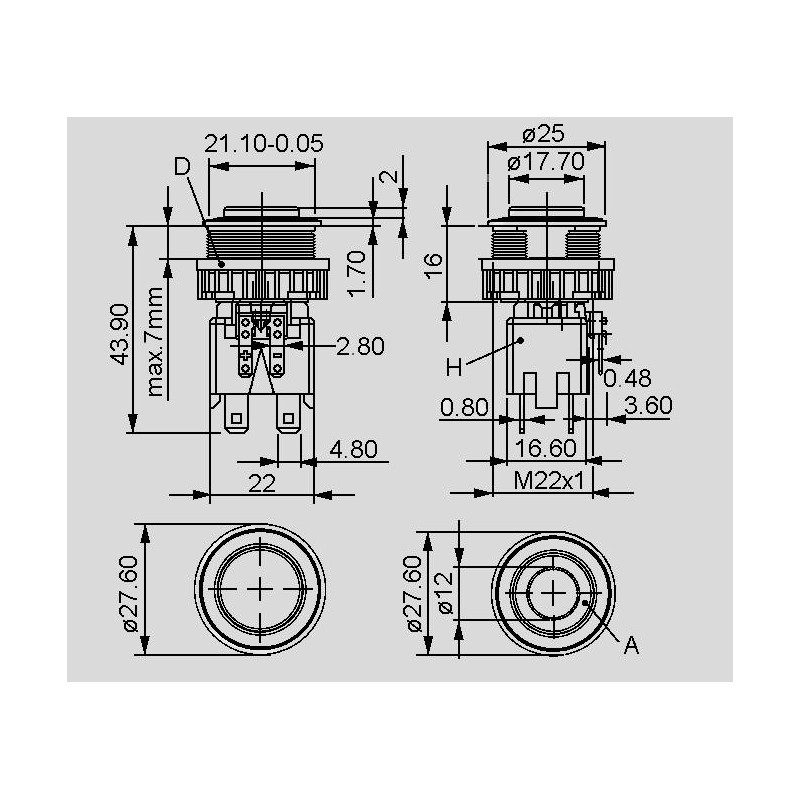

for Ø24 to 27mm housing cutouts
* series: MSM LA* contact: DPST-NΩ, latching
* high impact resistance, vandal-proof, IK07
* double pole NΩ latching contact
* easy visual status identification
* for switching voltage up to 250VAC
* very high reability
* ring illuminated or unilluminated
* shell material: stainless steel
* operating material: stainless steel
* material contacts: silver-plated
* switching voltage, max.: 250V AC
* switching current, max.: 12A
* switching capacity, max.: 3000W
* contact resistance: <100mΩ
* bounce time, typ.: <5ms
* operating force: 10N
* operating path: 4.5mm
* operating life/cycles: 50x103
* temperature range: -20...+85°C
* protection class: IP64
* by Schurter
MSM 22 1241.6834.1121000
Specifications
| manufacturer | Schurter |
| Manufacturer's name | 1241.6834.1121000 |
| Illumination | ring red |
| Panel cut-out [mm] | Ø 27 |
