MSM 22 1241.6834.1122000

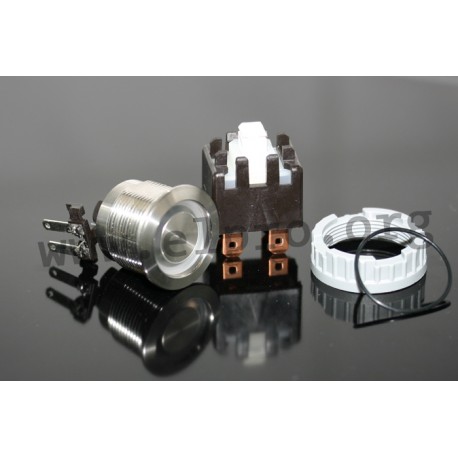

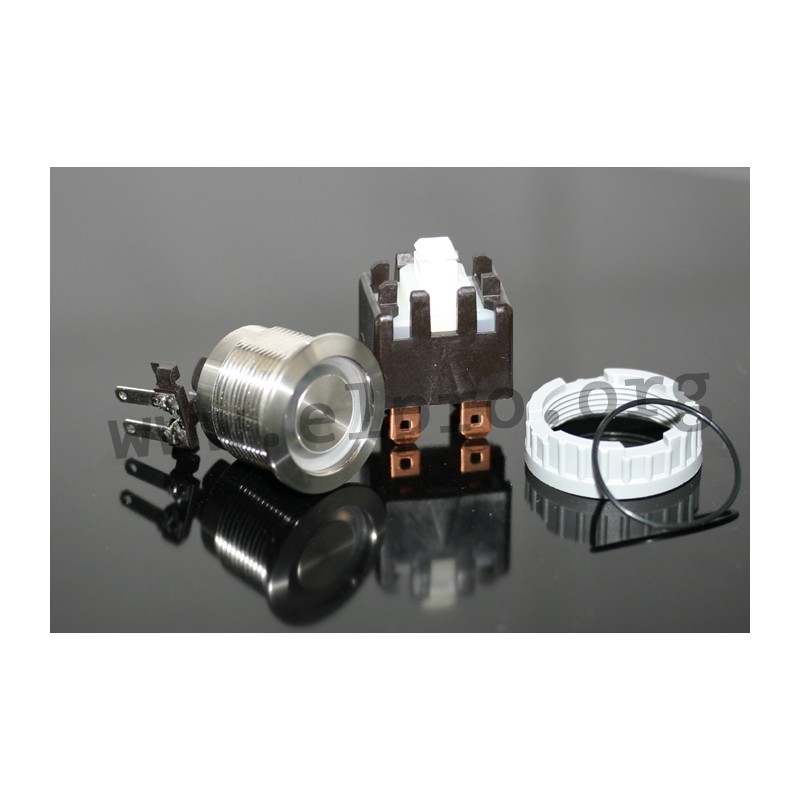

Schurter pressure switch series MSM LA

  • 2-pole pressure switches made of stainless steel (IP64)
  • with tab terminals, a long service life (50x10³ cycles) and a high build quality
  • vandalproof (IK07)
  • illuminated (MSM 19 1241.6824_ / MSM 1241.6834_) and unilluminated types (MSM 19 1241.6821_ / MSM 22 1241.6831_)
  • contact: DPST-NO, latching
  • maximal switching voltage: 250V AC
  • maximal switching current: 12A
  • maximal switching capacity: 3000W
  • operating temperature: -20 to +85°C
MSM 22 1241.6834.1122000

MSM 22 1241.6834.1122000

32628 MSM 22 1241.6834.1122000 1241.6834.1122000 1241.6834.1122000 Schurter pressure switch series MSM LA. 2-pole pressure switches made of stainless steel (IP64) with tab terminals, a long service life (50x10³ cycles) and a high build quality vandalproof (IK07) illuminated (MSM 19 1241.6824_ / MSM 1241.6834_) and unilluminated types (MSM 19 1241.6821_ / MSM 22 1241.6831_) contact: DPST-NO, latching maximal switching voltage: 250V AC maximal switching current: 12A maximal switching capacity: 3000W operating temperature: -20 to +85°C

Specifications

manufacturer
Manufacturer's name 1241.6834.1122000
Illumination ring green
Panel cut-out [mm] Ø22
Data Sheet

Unit price

31,19 €

Stock: 37
Next incoming goods:
CW 48/2024
20 units

Further delivery:
CW 03/2025
