0034.6000

Schurter fuse series MSF250

Miniature fuses in a Ø8,5mm housing made of thermoplastic (UL94V-0) with a fast acting characteristic and short as well as tinned copper terminals (4,3mm/Ø0,64mm). These radial type fuses have a breaking capacity of 35A and can be soldered or plugged in. They are suitable for a broad range of applications and comply with IEC60068-1. We offer various types of this Schurter series.

  • rated voltage: 250V
  • breaking capacity: 35A
  • rated current: 0,04 to 5A
  • operating temperature: -40 to +85°C
  • bulk

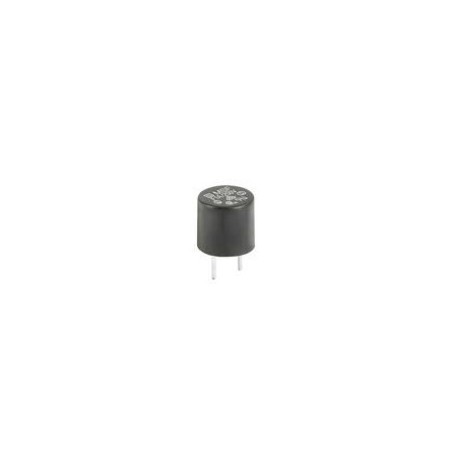

0034.6000, Schurter miniature fuse links, fast acting, radial, short terminals, MSF250 series

0034.6000

234902 0034.6000 0034.6000 Schurter fuse series MSF250. Miniature fuses in a Ø8,5mm housing made of thermoplastic (UL94V-0) with a fast acting characteristic and short as well as tinned copper terminals (4,3mm/Ø0,64mm). These radial type fuses have a breaking capacity of 35A and can be soldered or plugged in. They are suitable for a broad range of applications and comply with IEC60068-1. We offer various types of this Schurter series. rated voltage: 250V breaking capacity: 35A rated current: 0,04 to 5A operating temperature: -40 to +85°C bulk

Specifications

manufacturer
Manufacturer's name 0034.6000
Voltage drop, max. [mV] -
Melting integral [A²s] 0,00016
Rated current [A] 0,04
Nominal voltage [V] 250
Power dissipation [mW] -
Data Sheet

Unit price

0,515 €

Stock: 680
Further delivery:
CW 03/2025

Minimum order quantity 10 units or
multiples of 10.
