0034.4222

Schurter fuse series MSF 125

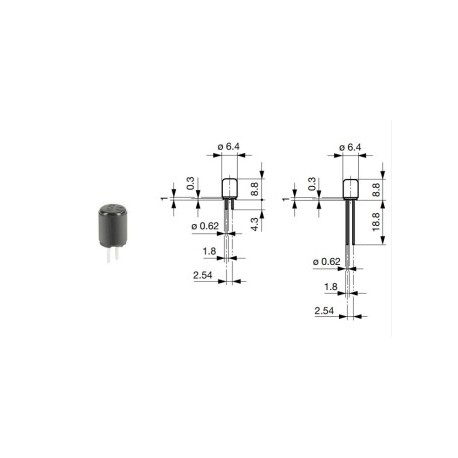

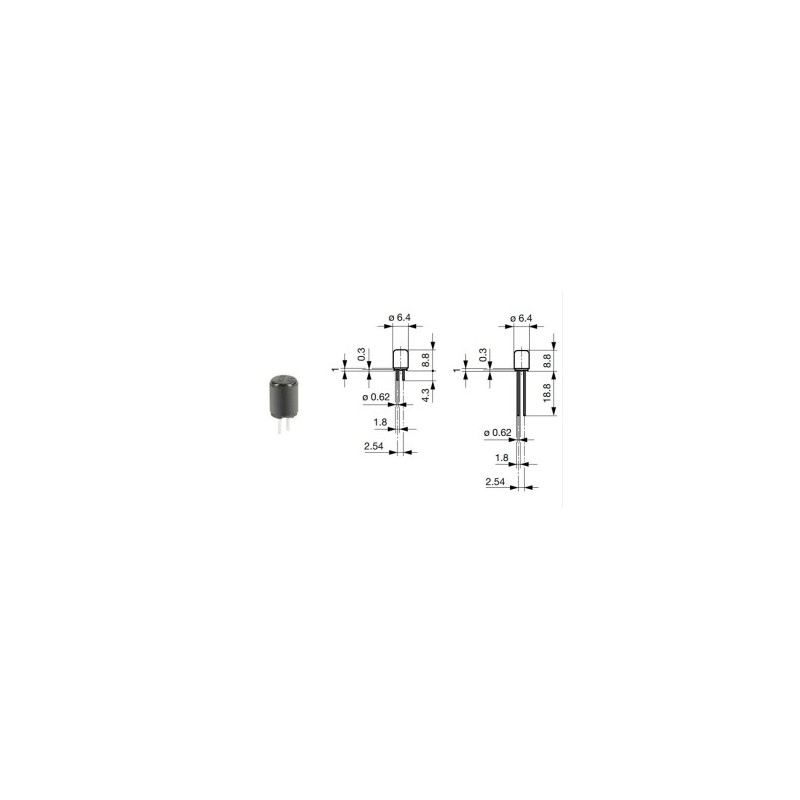

Miniature fuses in a radial type plastic housing (UL94V-0) with short terminals (4,3mm) made of tin-plated copper. These fuses have a fast acting characteristic (F) and are suitable for PCB mounting (soldering/plug-in). They have a breaking capacity of 100A and a diameter of Ø6,4mm. We offer various types of this Schurter series.

  • rated voltage: 125V AC/DC
  • rated current: 0,5 bis 2A
  • breaking capacity: 100A
  • operating temperature: -25 to +85°C
0034.4222, Schurter miniature fuse links, fast acting, radial, short terminals, MSF 125 series

0034.4222

250897 0034.4222 0034.4222 Schurter fuse series MSF 125. Miniature fuses in a radial type plastic housing (UL94V-0) with short terminals (4,3mm) made of tin-plated copper. These fuses have a fast acting characteristic (F) and are suitable for PCB mounting (soldering/plug-in). They have a breaking capacity of 100A and a diameter of Ø6,4mm. We offer various types of this Schurter series. rated voltage: 125V AC/DC rated current: 0,5 bis 2A breaking capacity: 100A operating temperature: -25 to +85°C

Specifications

manufacturer
Manufacturer's name 0034.4222
Voltage drop, max. [mV] 190
Melting integral [A²s] 0,22
Rated current [A] 1,25
Power dissipation [mW] 200
Data Sheet

Unit price

0,547 €

Stock: 0
Further delivery:
CW 25/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
