0034.4224

Schurter fuse series MSF 125

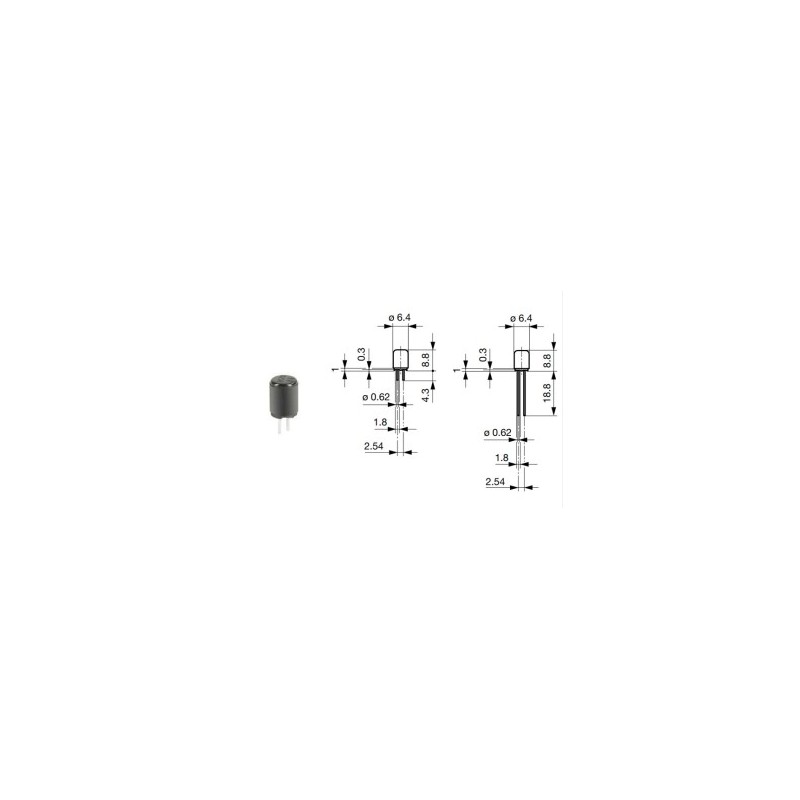

Miniature fuses in a radial type plastic housing (UL94V-0) with short terminals (4,3mm) made of tin-plated copper. These fuses have a fast acting characteristic (F) and are suitable for PCB mounting (soldering/plug-in). They have a breaking capacity of 100A and a diameter of Ø6,4mm. We offer the following types of this Schurter series: 0034.4216, 0034.4221 and 0034.4224.

  • rated voltage: 125V AC/DC
  • rated current: 0,5 bis 2A
  • breaking capacity: 100A
  • operating temperature: -25 to +85°C

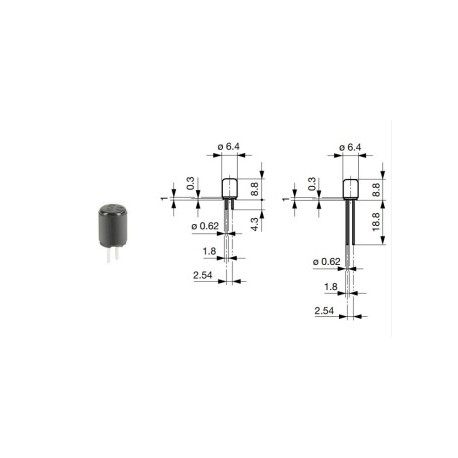

0034.4224, Schurter miniature fuse links, fast acting, radial, short terminals, MSF 125 series

0034.4224

244095 0034.4224 0034.4224 Schurter fuse series MSF 125. Miniature fuses in a radial type plastic housing (UL94V-0) with short terminals (4,3mm) made of tin-plated copper. These fuses have a fast acting characteristic (F) and are suitable for PCB mounting (soldering/plug-in). They have a breaking capacity of 100A and a diameter of Ø6,4mm. We offer the following types of this Schurter series: 0034.4216, 0034.4221 and 0034.4224. rated voltage: 125V AC/DC rated current: 0,5 bis 2A breaking capacity: 100A operating temperature: -25 to +85°C

Specifications

manufacturer
Manufacturer's name 0034.4224
Voltage drop, max. [mV] 0,19
Melting integral [A²s] 0,68
Rated current [A] 2
Power dissipation [mW] 200
Data Sheet

Unit price

0,589 €

Stock: 970
Further delivery:
CW 03/2025

Minimum order quantity 10 units or
multiples of 10.
