MCS 19 1241.2855

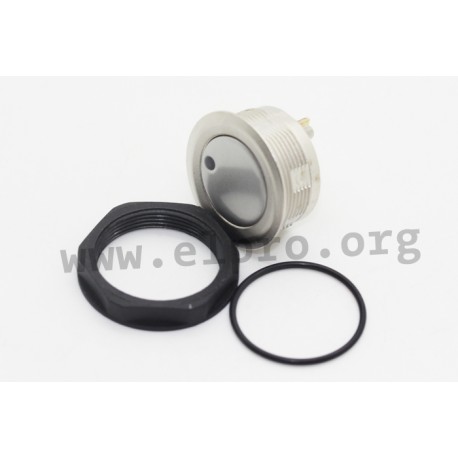

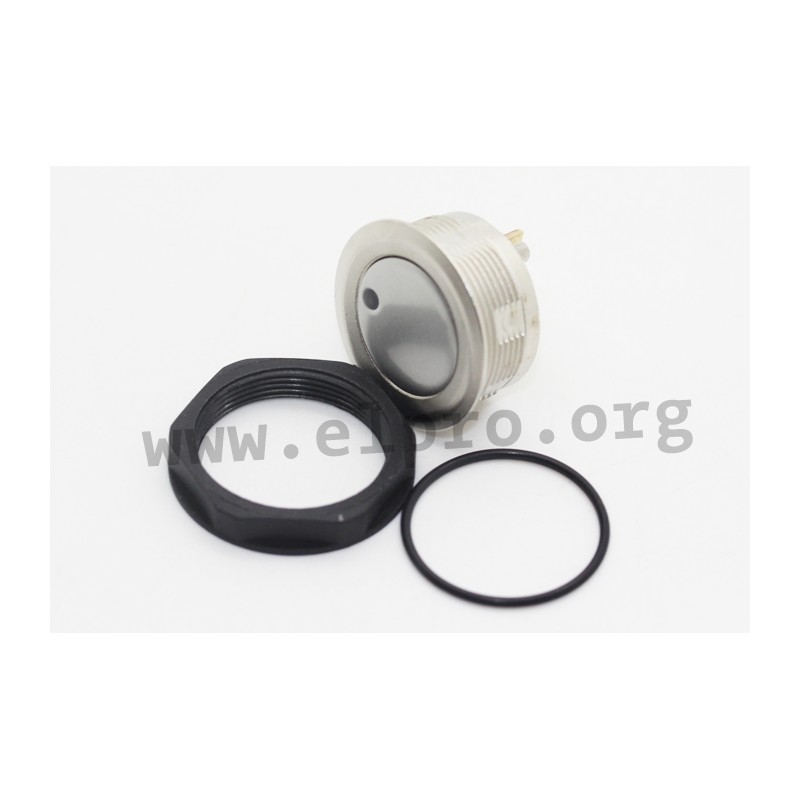

Schurter pushbutton series MCS 19

Vandalproof push button switches with 1x normally-open contact and an excellent quality. These momentary switches have soldering pins and are suitable for panel cut-outs of Ø19mm. They have a secure tactile input feedback and are IP40 rated. We offer the following types of this Schurter series: 1241.2801, 1241.2855, 1241.2856 and 1241.2858.

  • contact: 1x normally-open (SPST-NO)
  • panel cut-out: Ø19mm
  • maximal switching voltage: 48V DC
  • maximal switching current: 0,125A
  • maximal switching capacity: 1,2W
  • operating temperature: -25 to +60°C

MCS 19 1241.2855

13268 MCS 19 1241.2855 1241.2855 1241.2855 Schurter pushbutton series MCS 19. Vandalproof push button switches with 1x normally-open contact and an excellent quality. These momentary switches have soldering pins and are suitable for panel cut-outs of Ø19mm. They have a secure tactile input feedback and are IP40 rated. We offer the following types of this Schurter series: 1241.2801, 1241.2855, 1241.2856 and 1241.2858. contact: 1x normally-open (SPST-NO) panel cut-out: Ø19mm maximal switching voltage: 48V DC maximal switching current: 0,125A maximal switching capacity: 1,2W operating temperature: -25 to +60°C

Specifications

manufacturer
Manufacturer's name 1241.2855
Design illuminated
Colour red
Switching current [A] 0,125
Panel cut-out [mm] Ø19
Data Sheet

Unit price

13,09 €

Stock: 33
Further delivery:
CW 06/2025
