MCS 19 1241.2801

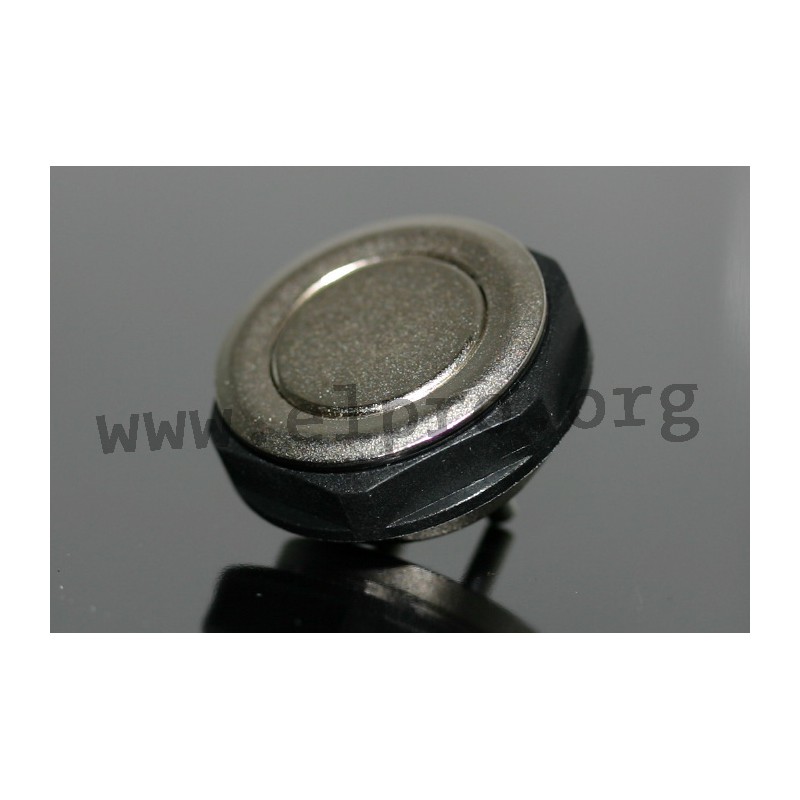

Schurter pushbutton series MCS 19

Vandalproof push button switches with 1x normally-open contact and an excellent quality. These momentary switches have soldering pins and are suitable for panel cut-outs of Ø19mm. They have a secure tactile input feedback and are IP40 rated. We offer the following types of this Schurter series: 1241.2801, 1241.2855, 1241.2856 and 1241.2858.

  • contact: 1x normally-open (SPST-NO)
  • panel cut-out: Ø19mm
  • maximal switching voltage: 48V DC
  • maximal switching current: 0,125A
  • maximal switching capacity: 1,2W
  • operating temperature: -25 to +60°C

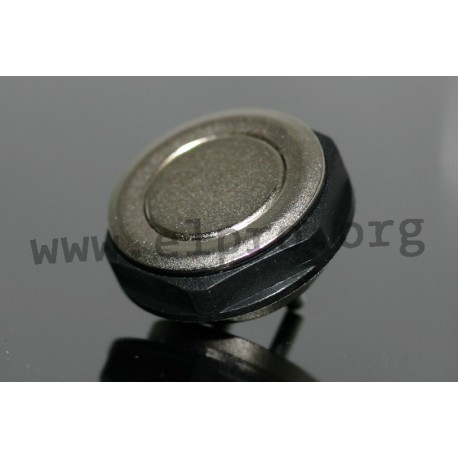

Schurter series MCS 19

MCS 19 1241.2801

13267 MCS 19 1241.2801 1241.2801 1241.2801 Schurter pushbutton series MCS 19. Vandalproof push button switches with 1x normally-open contact and an excellent quality. These momentary switches have soldering pins and are suitable for panel cut-outs of Ø19mm. They have a secure tactile input feedback and are IP40 rated. We offer the following types of this Schurter series: 1241.2801, 1241.2855, 1241.2856 and 1241.2858. contact: 1x normally-open (SPST-NO) panel cut-out: Ø19mm maximal switching voltage: 48V DC maximal switching current: 0,125A maximal switching capacity: 1,2W operating temperature: -25 to +60°C

Specifications

manufacturer
Manufacturer's name 1241.2801
Design unilluminated
Switching current [A] 0,125
Panel cut-out [mm] Ø19
Data Sheet

Unit price

6,79 €

Stock: 881
Next incoming goods:
CW 48/2024
400 units

Further delivery:
CW 06/2025
