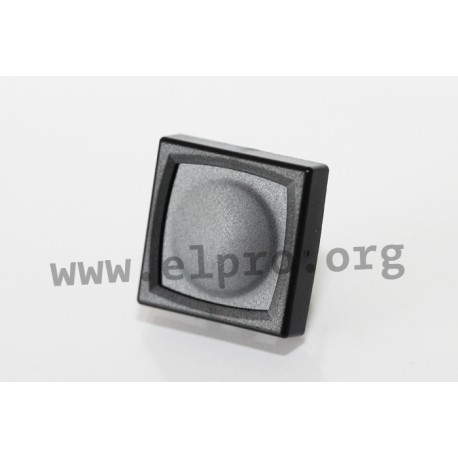

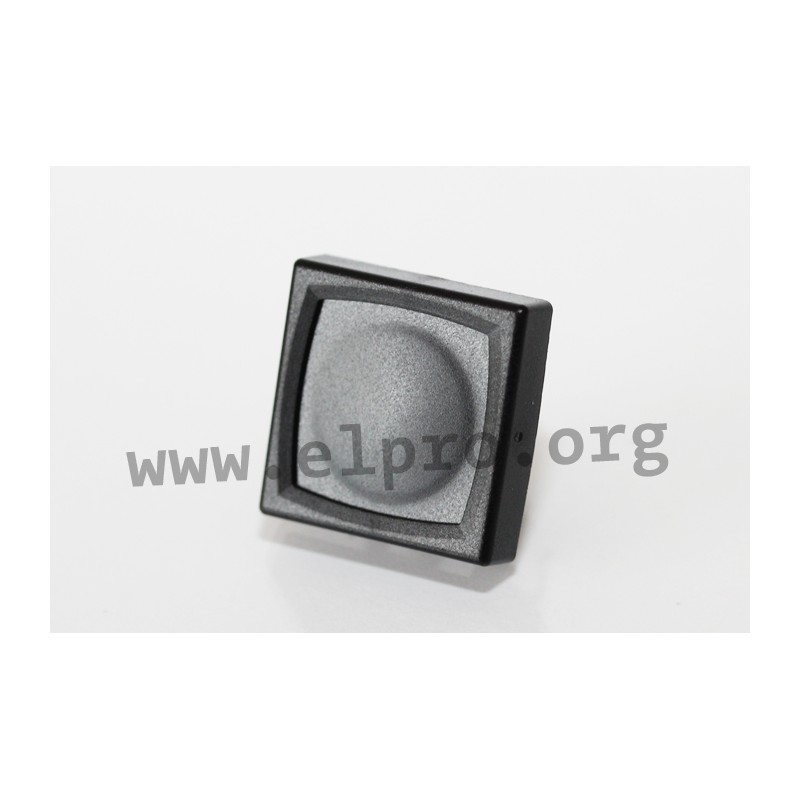

MCS 18 1100.7097

Schurter pushbutton series MCS 18

Single-pole push buttons with a normally-open contact (SPST-NO) and a round or square shape. These momentary switches are suitable for snap-in mounting and are IP65 rated (with sealing kit MCS 18 0098.9201). They are suitable for a Ø18mm panel cut-out and made of thermoplastic. We offer the following types of this Schurter series: 1241.1104.7097, 1241.1104.7093, 1241.1104.7091, 1241.1104.7095, 1241.1100.7097, 1241.1100.7093, 1241.1100.7090, 1241.1100.7095 and 0098.9201.

  • contact: 1x normally-open (SPST-NO)
  • panel cut-out: Ø18mm
  • maximal switching voltage: 48V DC
  • maximal switching current: 0,125A
  • maximal switching capacity: 0,72W
  • operating temperature: -25 to +60°C
MCS 18 1100.7097

MCS 18 1100.7097

13262 MCS 18 1100.7097 1241.1100.7097 1241.1100.7097 Schurter pushbutton series MCS 18. Single-pole push buttons with a normally-open contact (SPST-NO) and a round or square shape. These momentary switches are suitable for snap-in mounting and are IP65 rated (with sealing kit MCS 18 0098.9201). They are suitable for a Ø18mm panel cut-out and made of thermoplastic. We offer the following types of this Schurter series: 1241.1104.7097, 1241.1104.7093, 1241.1104.7091, 1241.1104.7095, 1241.1100.7097, 1241.1100.7093, 1241.1100.7090, 1241.1100.7095 and 0098.9201. contact: 1x normally-open (SPST-NO) panel cut-out: Ø18mm maximal switching voltage: 48V DC maximal switching current: 0,125A maximal switching capacity: 0,72W operating temperature: -25 to +60°C

Specifications

manufacturer
Manufacturer's name 1241.1100.7097
Design square
Colour black
Switching current [A] 0,125
Panel cut-out [mm] Ø 18
Data Sheet

Unit price

2,59 €

Stock: 3
Next incoming goods:
CW 48/2024
140 units

Further delivery:
CW 07/2025

Minimum order quantity 1 to 3 units or multiples of 10 plus 0 to 3 .
