0041.9156.3117
* material
socket: thermoplastic PES
pushbutton: thermoplastic PC
* contacts: CuZn 37/5µm Au
* switching voltage, max.: 60V AC/50V DC
* switching voltage, Min.: 100mV AC/DC
* switching current, max.: 0.2A
* switching capacity, max.: 1.2Ω
* contact resistance: <20 mΩ
* bounce time, Typ.: 0.5ms
* operating force LDT_: 1.5N ±0.3N
* operating path LDT_: 1.35mm ±0.2mm
* final operating path LDT_: 2.9mm±0.1mm
* stop strength: >50N
* operating life/cycles: 100000
* temperature range without LED: -25...+85°C
* temperature range with LED: -25...+60°C
* solderability: 235°C/2s
* protection class: IP40
* by Schurter

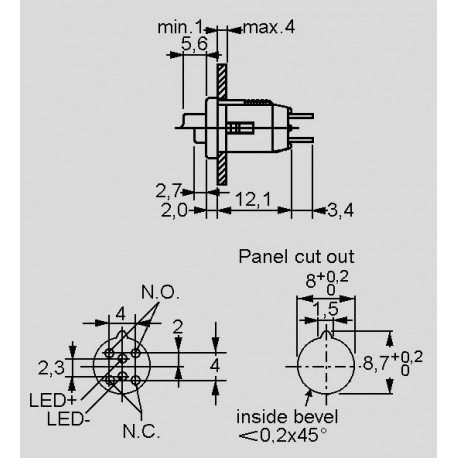

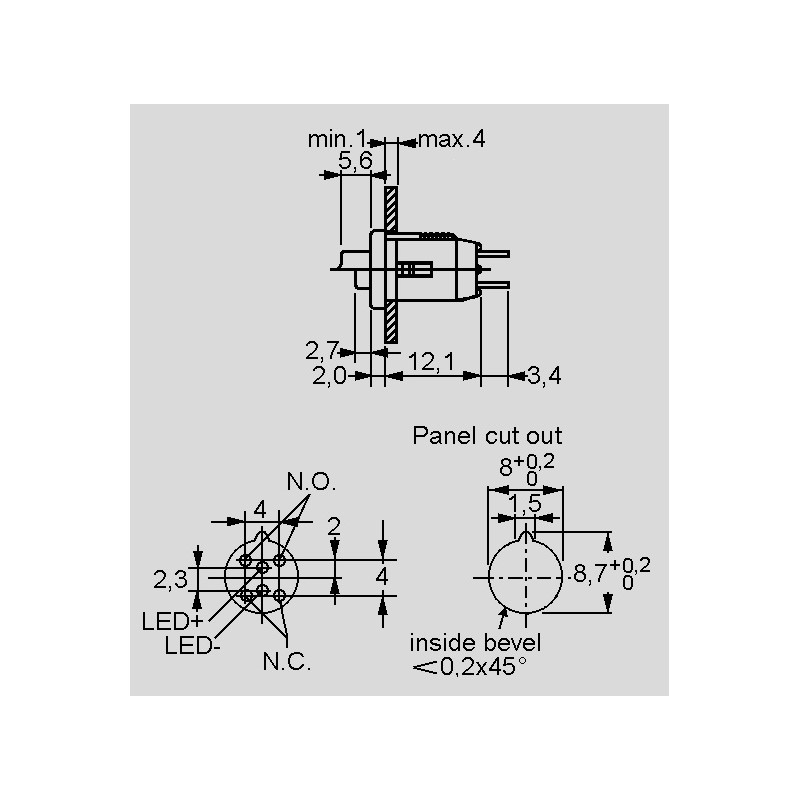

for Ø8mm panel cutouts by Schurter
* single pole input pushbutton switch or momentary switch with one SPST contact* material
socket: thermoplastic PES
pushbutton: thermoplastic PC
* contacts: CuZn 37/5µm Au
* switching voltage, max.: 60V AC/50V DC
* switching voltage, Min.: 100mV AC/DC
* switching current, max.: 0.2A
* switching capacity, max.: 1.2Ω
* contact resistance: <20 mΩ
* bounce time, Typ.: 0.5ms
* operating force LDT_: 1.5N ±0.3N
* operating path LDT_: 1.35mm ±0.2mm
* final operating path LDT_: 2.9mm±0.1mm
* stop strength: >50N
* operating life/cycles: 100000
* temperature range without LED: -25...+85°C
* temperature range with LED: -25...+60°C
* solderability: 235°C/2s
* protection class: IP40
* by Schurter
0041.9156.3117
Specifications
| manufacturer | Schurter |
| Manufacturer's name | 0041.9156.3117 |
| Switch positions | momentary switch |
| Actuator | illuminated, red |
| Forward voltage [V] | 2 |
| Forward current [mA] | 10 |
| Wavelength [nm] | 635 |
| Switching current [A] | 0,2 |
| Luminous intensity [µcd] | 11,2...28 |
| Viewing angle [°] | 50 |
| Panel cut-out [mm] | Ø 8 |
