> Passive elements>Switches/keys>Keys>Schurter push button switches, for Ø8mm panel cut-out, 1 normally open contact, LDT and LDS series>0850.9242

Manufacturers

0850.9242

for Ø8mm panel cutouts by Schurter

* single pole input pushbutton switch or momentary switch with one SPST contact
* material
socket: thermoplastic PES
pushbutton: thermoplastic PC
* contacts: CuZn 37/5µm Au
* switching voltage, max.: 60V AC/50V DC
* switching voltage, Min.: 100mV AC/DC
* switching current, max.: 0.2A
* switching capacity, max.: 1.2Ω
* contact resistance: <20 mΩ
* bounce time, Typ.: 0.5ms
* operating force LDT_: 1.5N ±0.3N
* operating path LDT_: 1.35mm ±0.2mm
* final operating path LDT_: 2.9mm±0.1mm
* stop strength: >50N
* operating life/cycles: 100000
* temperature range without LED: -25...+85°C
* temperature range with LED: -25...+60°C
* solderability: 235°C/2s
* protection class: IP40
* by Schurter

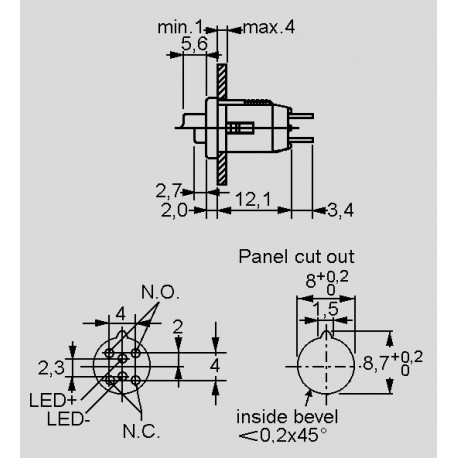

dimensions

0850.9242

39766 0850.9242 0850.9242 for Ø8mm panel cutouts by Schurter. * single pole input pushbutton switch or momentary switch with one SPST contact* materialsocket: thermoplastic PESpushbutton: thermoplastic PC* contacts: CuZn 37/5µm Au* switching voltage, max.: 60V AC/50V DC* switching voltage, Min.: 100mV AC/DC* switching current, max.: 0.2A* switching capacity, max.: 1.2Ω* contact resistance: &lt;20 mΩ * bounce time, Typ.: 0.5ms* operating force LDT_: 1.5N ±0.3N* operating path LDT_: 1.35mm ±0.2mm* final operating path LDT_: 2.9mm±0.1mm* stop strength: &gt;50N* operating life/cycles: 100000* temperature range without LED: -25...+85°C* temperature range with LED: -25...+60°C* solderability: 235°C/2s* protection class: IP40* by Schurter

Specifications

manufacturer
Manufacturer's name 0850.9242
Switch positions mounting ring
Switching current [A] 0,2
Panel cut-out [mm] Ø 8
Data Sheet

Unit price

0,243 €

Stock: 130
Further delivery:
CW 08/2025

Minimum order quantity 10 units or
multiples of 10.
