KMF1.1141.11

Schurter RFI filter series KMF

RFI filters in a metal housing with a 2-pole line switch, an IEC plug and a fuse holder for two 5x20mm fuses. These line filters are suitable for snap-in mounting and have connections for PCB mounting as well as a 4,8x0,8mm tab terminal. We offer the following types of this Schurter series: KMF1.1111.11, KMF1.1141.11, KMF1.1161.11 and KMF1.1191.11.

  • rated current: 1 to 10A
  • dielectric strength line/ground: >2,7kV DC
  • dielectric strength line/line: >1,7kV DC
  • operating temperature: -25 to +85°C

Matching fuse drawers

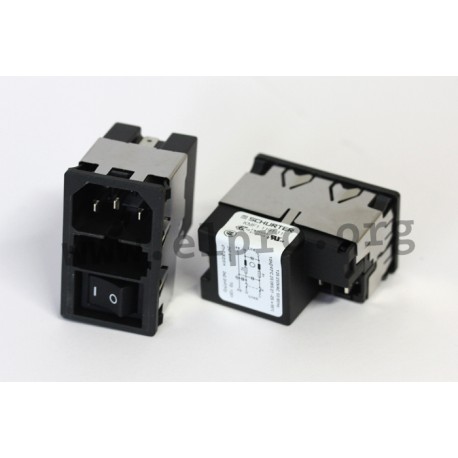

KMF1._

KMF1.1141.11

32581 KMF1.1141.11 KMF1.1141.11 Schurter RFI filter series KMF. RFI filters in a metal housing with a 2-pole line switch, an IEC plug and a fuse holder for two 5x20mm fuses. These line filters are suitable for snap-in mounting and have connections for PCB mounting as well as a 4,8x0,8mm tab terminal. We offer the following types of this Schurter series: KMF1.1111.11, KMF1.1141.11, KMF1.1161.11 and KMF1.1191.11. rated current: 1 to 10A dielectric strength line/ground: >2,7kV DC dielectric strength line/line: >1,7kV DC operating temperature: -25 to +85°C  Matching fuse drawers

Specifications

manufacturer
Manufacturer's name KMF1.1141.11
Rated current [mA] 4
Inductance [µH] 2x1600
CX [µF] 0,047
CY [pF] 2200
Data Sheet

Unit price

23,29 €

Stock: 39
Further delivery:
CW 06/2025
