0034.5049

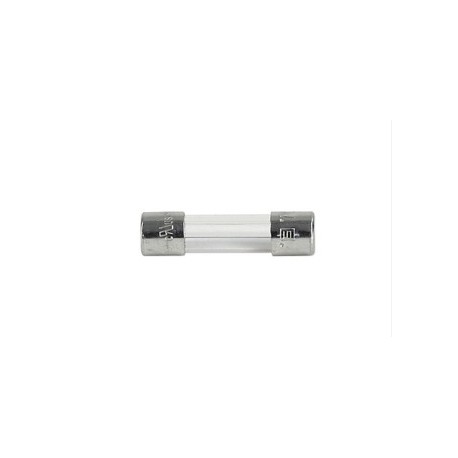

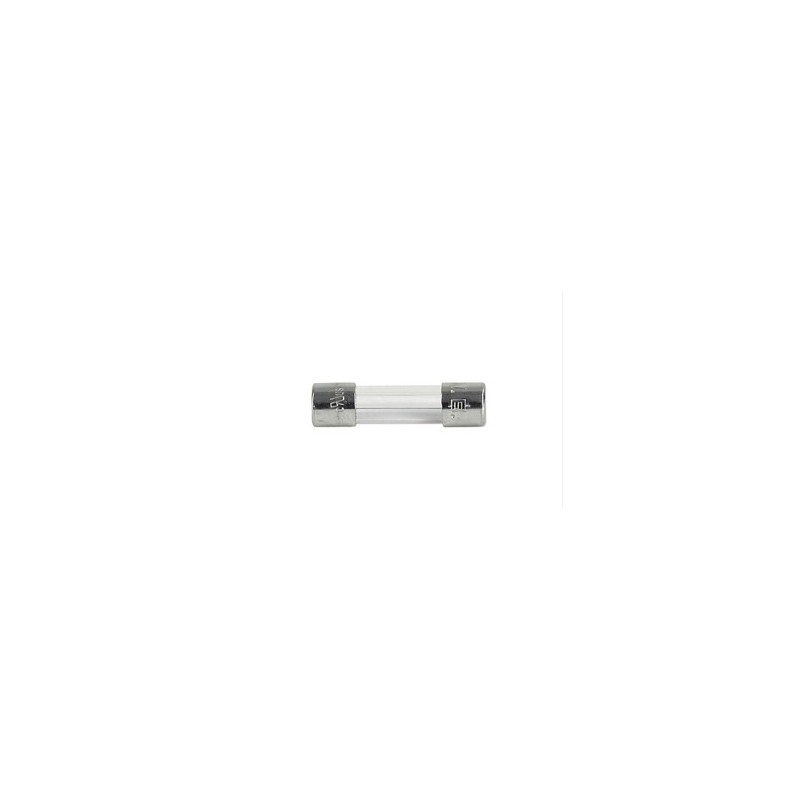

Schurter fuse link series FTT 5x20

Fuse links in a 5x20mm housing made of glass with end caps made of nickel-plated copper alloy. These fuses have a super time lag (TT) characteristic and a low breaking capacity. They are suitable for use as primary protection in appliances and comply with IEC60068-1 as well as UL 284-14. We offer the following types of this Schurter series: 0034.5042, 0034.5043, 0034.5046, 0034.5048 and 0034.5049.

  • rated voltage: 250V AC
  • rated current: 0,8 to 4A
  • characteristic: super time lag (TT)
  • breaking capacity: 35A
  • operating temperature: -40 to +85°C
  • weight: 1g
0034.5049, Schurter fuse links, 5x20mm, super time lag, 250V, FTT 5x20 series

0034.5049

244153 0034.5049 0034.5049 Schurter fuse link series FTT 5x20. Fuse links in a 5x20mm housing made of glass with end caps made of nickel-plated copper alloy. These fuses have a super time lag (TT) characteristic and a low breaking capacity. They are suitable for use as primary protection in appliances and comply with IEC60068-1 as well as UL 284-14. We offer the following types of this Schurter series: 0034.5042, 0034.5043, 0034.5046, 0034.5048 and 0034.5049. rated voltage: 250V AC rated current: 0,8 to 4A characteristic: super time lag (TT) breaking capacity: 35A operating temperature: -40 to +85°C weight: 1g

Specifications

manufacturer
Manufacturer's name 0034.5049
Nominal voltage [V AC] 250
Voltage drop, max. [mV] 80
Melting integral [A²s] 410
Rated current [A] 4
Power dissipation [mW] 1150
Data Sheet

Unit price

0,686 €

Stock: 200
Further delivery:
CW 06/2025

Minimum order quantity 10 units or
multiples of 10.
