0034.2523

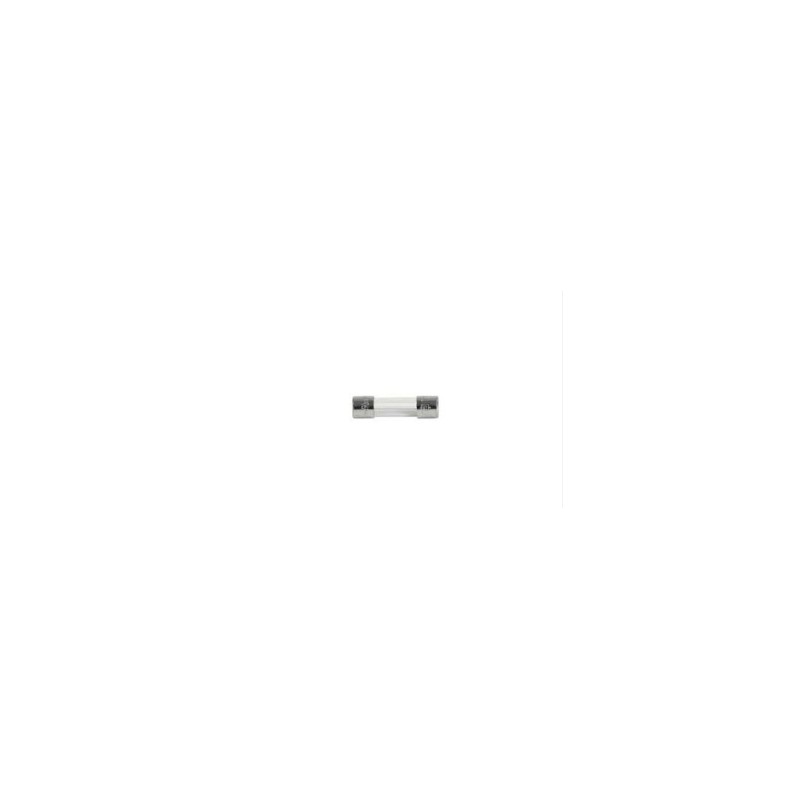

Schurter fuse link series FSM 5x20

Fuses in a 5x20mm glass/ceramic housing with nickel-plated end caps made of copper alloy. These safety fuses have a medium time lag (M) characteristic and comply with IEC60068-1 sowie climate category 40/085/21. They have a low/medium breaking capacity and are suitable fos use as primary protection. We offer the following types of this Schurter series: 0034.2511, 0034.2512, 0034.2513, 0034.2516, 0034.2518, 0034.2519, 0034.2520, 0034.2521, 0034.2522, 0034.2523, 0034.2524, 0034.2525 and 0034.2526.

  • rated voltage: 250V AC
  • rated current: 0,315 to 10A
  • breaking capacity: 80 to 1000A
  • operating temperature: -40 to +85°C
  • weight: 0,92g
0034.2523, Schurter fuse links, 5x20mm, medium time lag, 250V, FSM 5x20 series

0034.2523

244117 0034.2523 0034.2523 Schurter fuse link series FSM 5x20. Fuses in a 5x20mm glass/ceramic housing with nickel-plated end caps made of copper alloy. These safety fuses have a medium time lag (M) characteristic and comply with IEC60068-1 sowie climate category 40/085/21. They have a low/medium breaking capacity and are suitable fos use as primary protection. We offer the following types of this Schurter series: 0034.2511, 0034.2512, 0034.2513, 0034.2516, 0034.2518, 0034.2519, 0034.2520, 0034.2521, 0034.2522, 0034.2523, 0034.2524, 0034.2525 and 0034.2526. rated voltage: 250V AC rated current: 0,315 to 10A breaking capacity: 80 to 1000A operating temperature: -40 to +85°C weight: 0,92g

Specifications

manufacturer
Manufacturer's name 0034.2523
Nominal voltage [V AC] 250
Voltage drop, max. [mV] 150
Melting integral [A²s] 52,5
Rated current [A] 5
Power dissipation [mW] 1400
Data Sheet

Unit price

0,335 €

Stock: 940
Further delivery:
CW 06/2025

Minimum order quantity 10 units or
multiples of 10.
