0034.3861

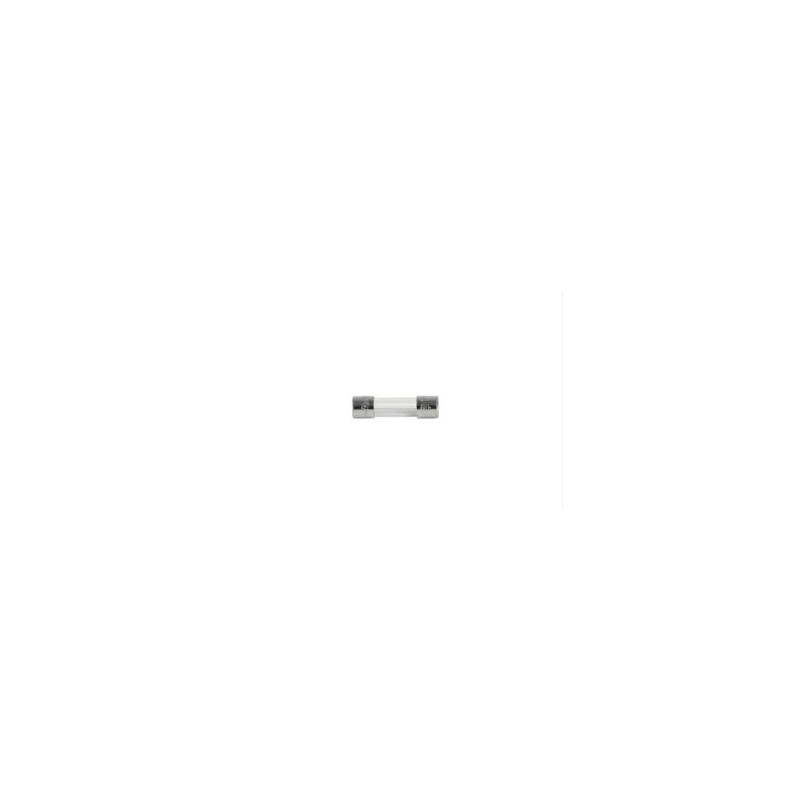

Schurter fuse link series FSK 5x20

Fuse links in a 5x20mm housing made of glass with nickel-plated end caps made of copper alloy. These fuses have a fast acting characteristic and comply with UL 248-14, IEC60068-1 as well as climate category 40/085/21. They are suitable for use as primary protection in appliances and have a low breaking capacity. We offer various types of this Schurter series.

  • rated voltage: 250V AC
  • rated current: 1 to 3A
  • breaking capacity: 0,31 to 10.000A
  • operating temperature: -40 to +85°C
  • weight: 1g
0034.3861, Schurter fuse links, 5x20mm, fast acting, 250V, FSK 5x20 series

0034.3861

251010 0034.3861 0034.3861 Schurter fuse link series FSK 5x20. Fuse links in a 5x20mm housing made of glass with nickel-plated end caps made of copper alloy. These fuses have a fast acting characteristic and comply with UL 248-14, IEC60068-1 as well as climate category 40/085/21. They are suitable for use as primary protection in appliances and have a low breaking capacity. We offer various types of this Schurter series. rated voltage: 250V AC rated current: 1 to 3A breaking capacity: 0,31 to 10.000A operating temperature: -40 to +85°C weight: 1g

Specifications

manufacturer
Manufacturer's name 0034.3861
Nominal voltage [V AC] 250
Voltage drop, max. [mV] 1200
Melting integral [A²s] 0,07
Rated current [A] 0,3
Data Sheet

Unit price

0,35 €

Stock: 0
Further delivery:
CW 37/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
