3-104-586

Schurter RFI filter series FMAC NEO

Three-phase RFI filters in a metal housing with protection class I and screw-on terminals. These line filters have modular terminals for a fast installation and are available in industrial (3-104-5_) as well as low leakage (3-104-8_) versions. We offer the following types of this Schurter series: 3-104-580, 3-104-862, 3-104-581, 3-104-841, 3-104-582, 3-104-872, 3-104-583, 3-104-873, 3-104-584, 3-104-874, 3-104-585, 3-104-586, 3-104-587 and 3-104-588.

  • rated current: 16 to 230A
  • dielectric strength line/ground: 2750V DC
  • dielectric strength line/line: 2250V DC
  • operating temperature: -40 to +100°C

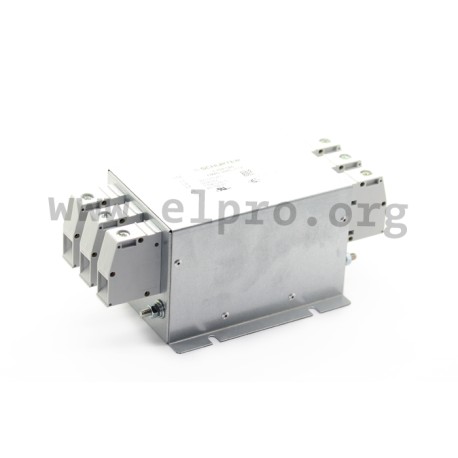

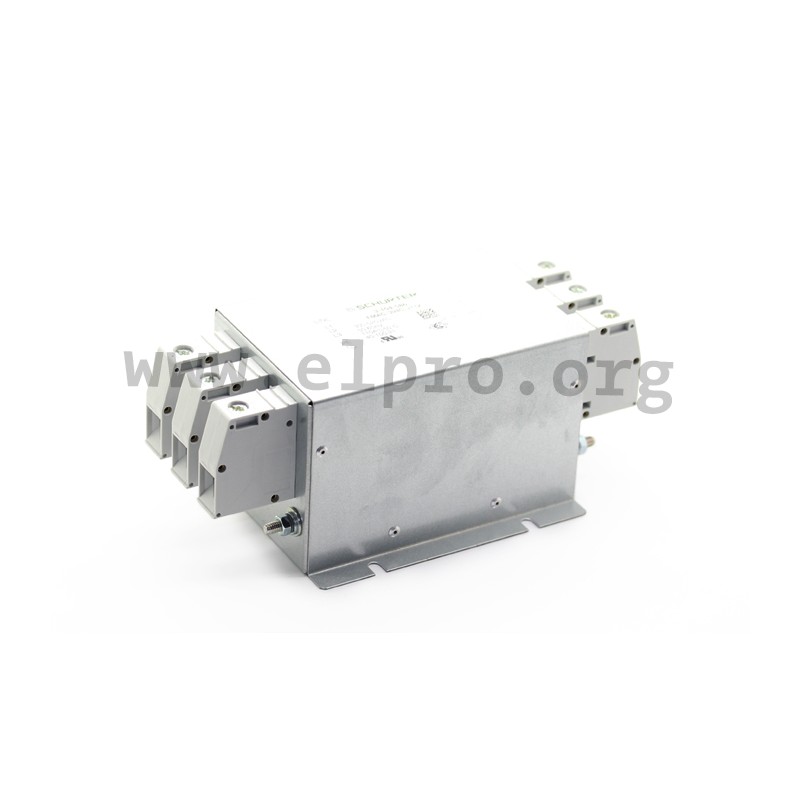

3-104-586, Schurter RFI filters, 3-Phase, FMAC NEO series

3-104-586

116771 3-104-586 3-104-586 Schurter RFI filter series FMAC NEO. Three-phase RFI filters in a metal housing with protection class I and screw-on terminals. These line filters have modular terminals for a fast installation and are available in industrial (3-104-5_) as well as low leakage (3-104-8_) versions. We offer the following types of this Schurter series: 3-104-580, 3-104-862, 3-104-581, 3-104-841, 3-104-582, 3-104-872, 3-104-583, 3-104-873, 3-104-584, 3-104-874, 3-104-585, 3-104-586, 3-104-587 and 3-104-588. rated current: 16 to 230A dielectric strength line/ground: 2750V DC dielectric strength line/line: 2250V DC operating temperature: -40 to +100°C

Specifications

manufacturer
Manufacturer's name 3-104-586
Rated current [A] 110
Leakage current [mA] 12,2
Data Sheet

Unit price

287,79 €

Stock: 5
Further delivery:
CW 04/2025
