3-109-559

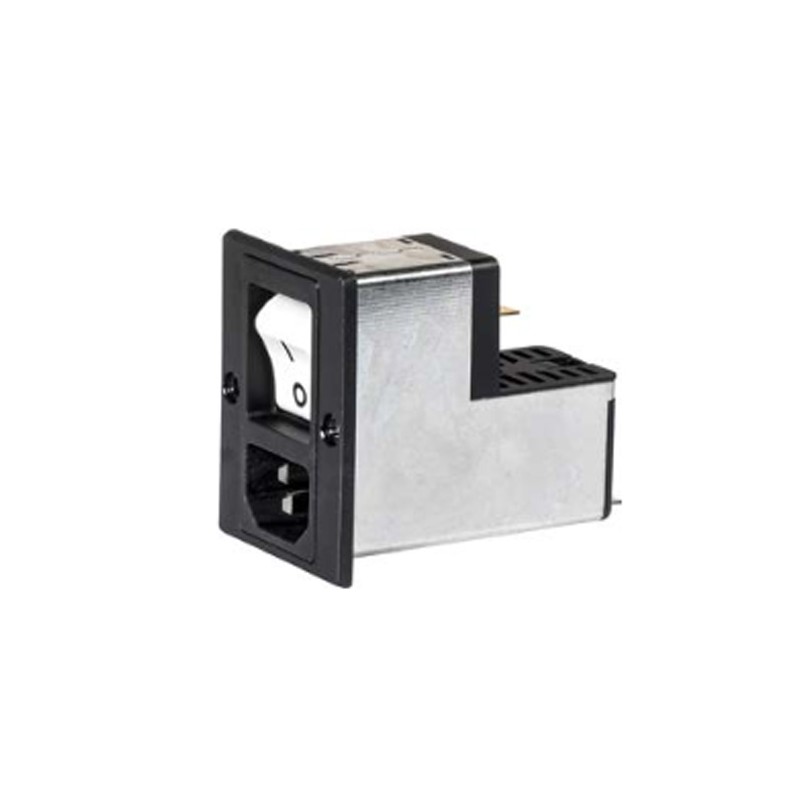

Schurter RFI filter series DG12

2-pole RFI filters in a metal housing with an IEC plug, protection class I and a line switch. These line filters are suitable for screw mounting (front face) and have 6,3x0,8mm tab terminals. We offer the following types of this Schurter series: 3-108-854, 3-109-557, 3-109-559, 3-109-560, 3-109-561, 3-109-572, 3-109-698, 3-118-974, 3-109-575, 3-108-465, 3-118-982, 3-109-573, and 3-109-558.

  • rated current: 1 to 15A
  • rated voltage: 250V AC
  • dielectric strength line/ground: >2,7kV DC
  • dielectric strength line/line: >1,7kV DC
  • operating temperature: -25 to +60°C

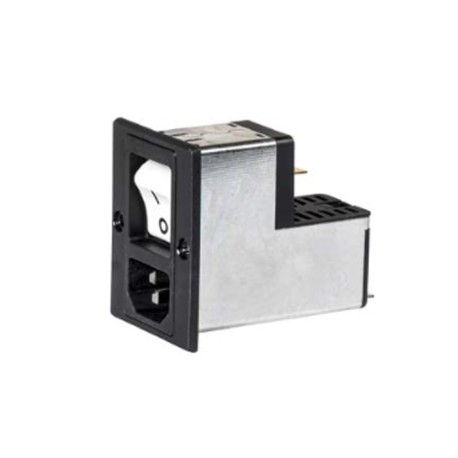

3-109-559, Schurter RFI filters, with IEC plug and switch, DG12 series

3-109-559

116690 3-109-559 3-109-559 Schurter RFI filter series DG12. 2-pole RFI filters in a metal housing with an IEC plug, protection class I and a line switch. These line filters are suitable for screw mounting (front face) and have 6,3x0,8mm tab terminals. We offer the following types of this Schurter series: 3-108-854, 3-109-557, 3-109-559, 3-109-560, 3-109-561, 3-109-572, 3-109-698, 3-118-974, 3-109-575, 3-108-465, 3-118-982, 3-109-573, and 3-109-558. rated current: 1 to 15A rated voltage: 250V AC dielectric strength line/ground: >2,7kV DC dielectric strength line/line: >1,7kV DC operating temperature: -25 to +60°C

Specifications

manufacturer
Manufacturer's name 3-109-559
Rocker black
CX [nF] 220
inductance [mH] 2x2
CY [nF] 2,2
Rated current [A] 4
Data Sheet

Unit price

33,69 €

Stock: 0
Further delivery:
CW 08/2025

Minimum order quantity 20 units or
multiples of 20.
