DD12.8121.111

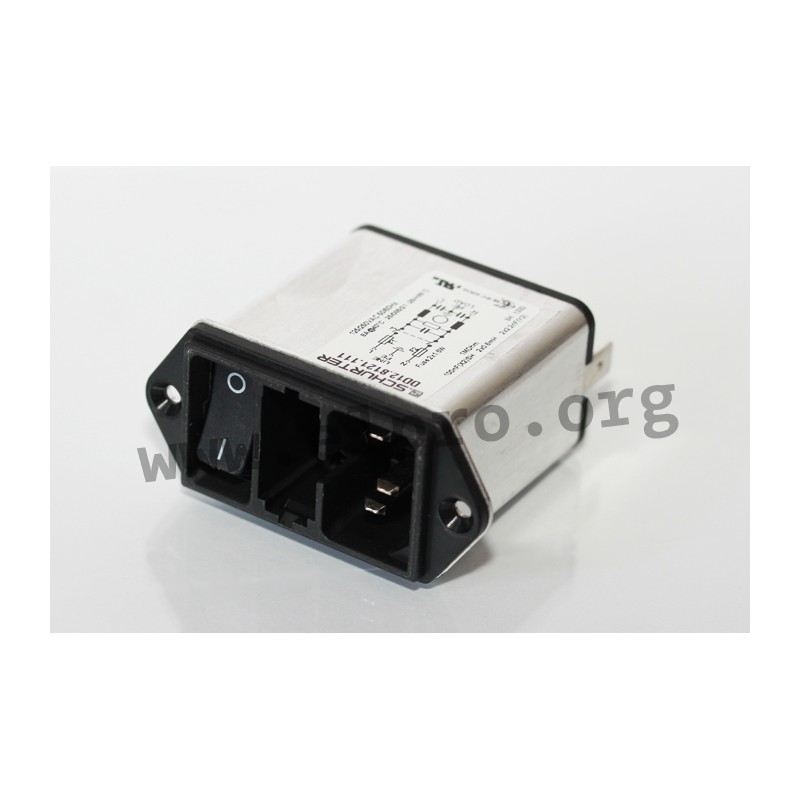

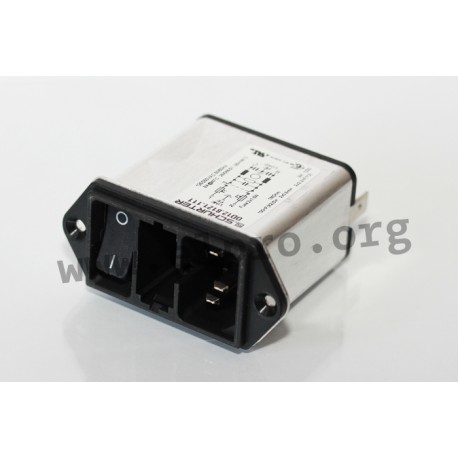

Schurter RFI filter series DD12

RFI filters in a metal housing with a 2-pole line switch, an IEC plug and a fuse holder for two 5x20mm fuses (fuse drawer must be ordered separately). These line filters have a tab terminal (6,3x0,8mm) and are suitable for screw mounting. We offer the following types of this Schurter series: DD12.1121.111, DD12.2121.111, DD12.4121.111, DD12.6121.111, DD12.8121.111 and DD12.9121.111.

  • rated current: 1 to 10A
  • rated voltage: 250V AC (50/60Hz)
  • dielectric strength line/ground: >2,7kV DC
  • dielectric strength line/line: >1,7kV DC
  • operating temperature: -25 to +85°C

Matching fuse drawers

DD12.8121.111

DD12.8121.111

29951 DD12.8121.111 DD12.8121.111 Schurter RFI filter series DD12. RFI filters in a metal housing with a 2-pole line switch, an IEC plug and a fuse holder for two 5x20mm fuses (fuse drawer must be ordered separately). These line filters have a tab terminal (6,3x0,8mm) and are suitable for screw mounting. We offer the following types of this Schurter series: DD12.1121.111, DD12.2121.111, DD12.4121.111, DD12.6121.111, DD12.8121.111 and DD12.9121.111. rated current: 1 to 10A rated voltage: 250V AC (50/60Hz) dielectric strength line/ground: >2,7kV DC dielectric strength line/line: >1,7kV DC operating temperature: -25 to +85°C Matching fuse drawers

Specifications

manufacturer
Manufacturer's name DD12.8121.111
R [MΩ] 1
CX [nF] 100
inductance [mH] 2x0,6
CY [nF] 2,2
Rated current [A] 8
Data Sheet

Unit price

24,69 €

Stock: 60
Further delivery:
CW 06/2025
