0090.0015

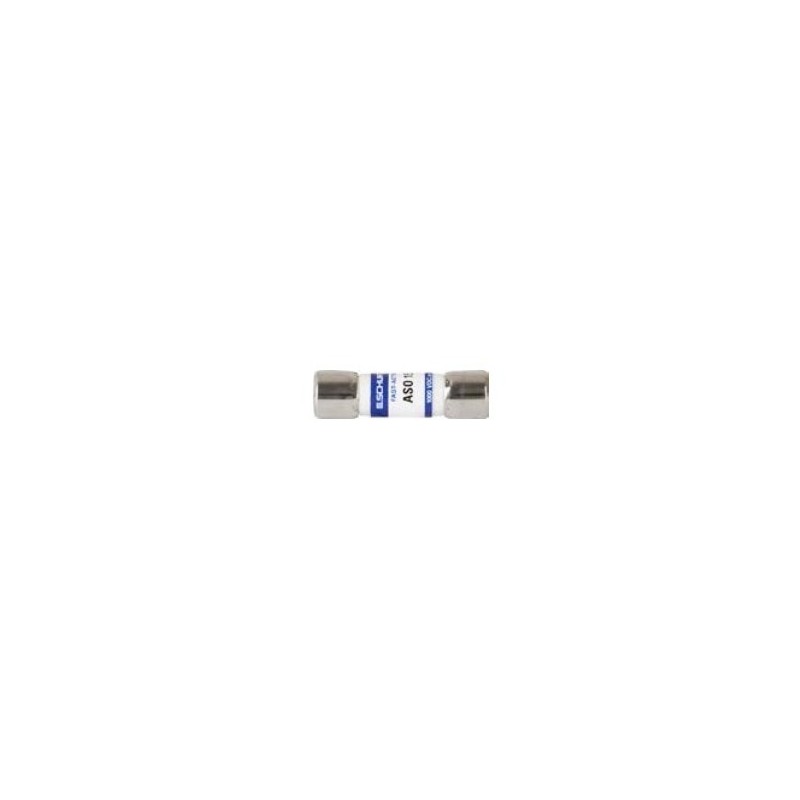

Schurter fuse link series ASO

  • safety fuses for all photovoltaic applications in a 10,3x38mm housing
  • comply with the new UL and IEC photovoltaic standards (IEC 61730-2)
  • with a breaking capacity of 20kA (at 1000V DC) and a min. switching capacity of 1,35xIN
  • characteristic: gPV
  • rated voltage: 1000V DC

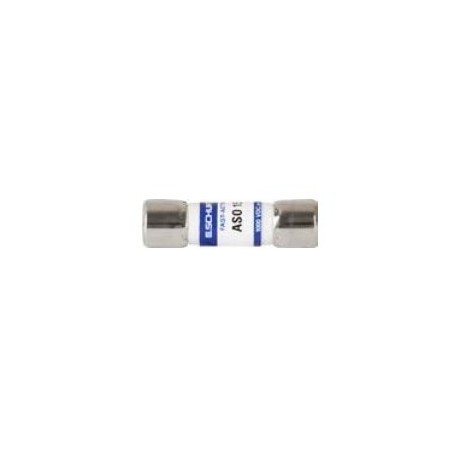

0090.0015, Schurter fuse links, photovoltaics, 10,3x38mm, 1000V, ASO series

0090.0015

235182 0090.0015 0090.0015 Schurter fuse link series ASO. safety fuses for all photovoltaic applications in a 10,3x38mm housing comply with the new UL and IEC photovoltaic standards (IEC 61730-2) with a breaking capacity of 20kA (at 1000V DC) and a min. switching capacity of 1,35xIN characteristic: gPV rated voltage: 1000V DC

Specifications

manufacturer
Manufacturer's name 0090.0015
Nominal voltage [V AC] 1000
Melting integral [A²s] 505
Rated current [A] 15
Power dissipation [mW] 1914
Data Sheet

Unit price

6,19 €

Stock: 49
Next incoming goods:
CW 05/2025
100 units

Further delivery:
CW 16/2025
