3-145-164

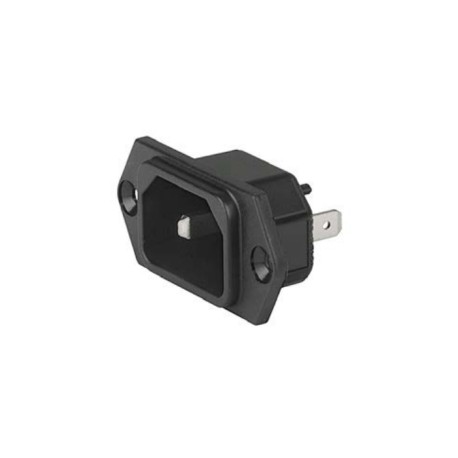

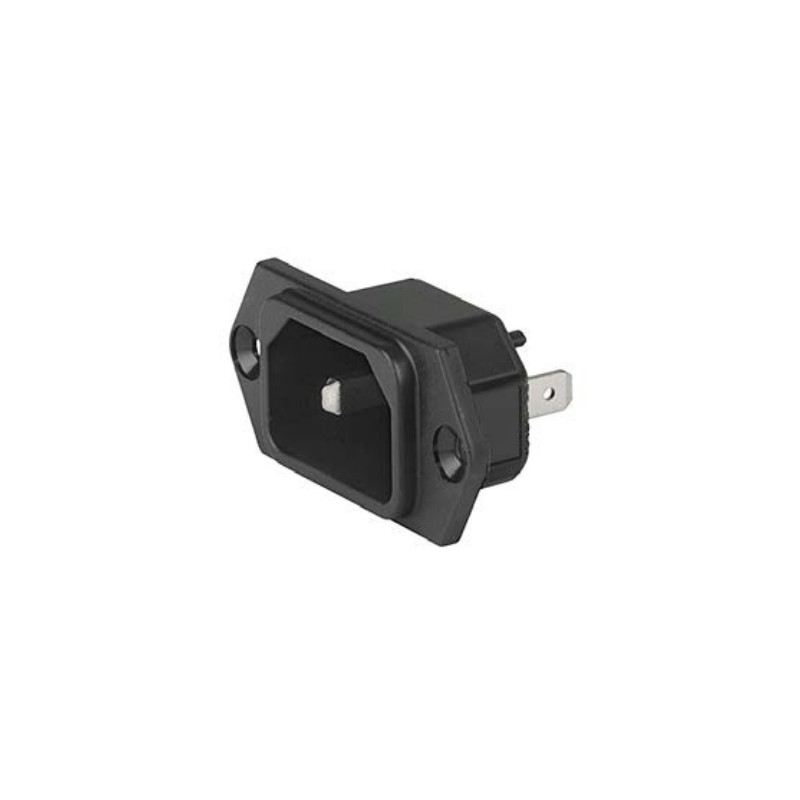

Schurter IEC connector series 6102-3

IEC appliance inlets C18 with a solder or quick connect terminal. These devices are suitable for a pin temperature of up to +70°C and are IP40 rated. They are suitable for screw-on mounting as well as for protection class II devices. We offer the following types of this Schurter series: 3-145-163, 6102.3100, 3-145-164, 6102.3200, 3-145-174 and 6102.3300.

  • rated voltage: 250V AC
  • rated current: 10A
  • dielectric strength: >2kV AC
  • operating temperature: -25 to +70°C
3-145-164, Schurter IEC appliance inlets, 70°C, screw-on mounting, 6102-3 series

3-145-164

245242 3-145-164 3-145-164 Schurter IEC connector series 6102-3. IEC appliance inlets C18 with a solder or quick connect terminal. These devices are suitable for a pin temperature of up to +70°C and are IP40 rated. They are suitable for screw-on mounting as well as for protection class II devices. We offer the following types of this Schurter series: 3-145-163, 6102.3100, 3-145-164, 6102.3200, 3-145-174 and 6102.3300. rated voltage: 250V AC rated current: 10A dielectric strength: >2kV AC operating temperature: -25 to +70°C

Specifications

manufacturer
Manufacturer's name 3-145-164
Data Sheet

Unit price

1,07 €

Stock: 100
Further delivery:
CW 05/2025
