3-144-634

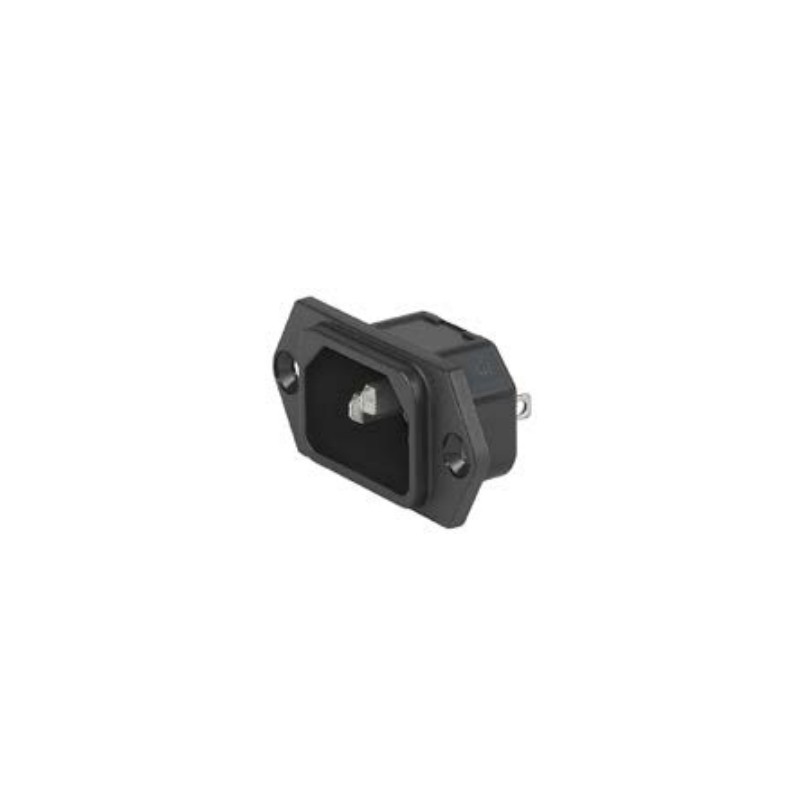

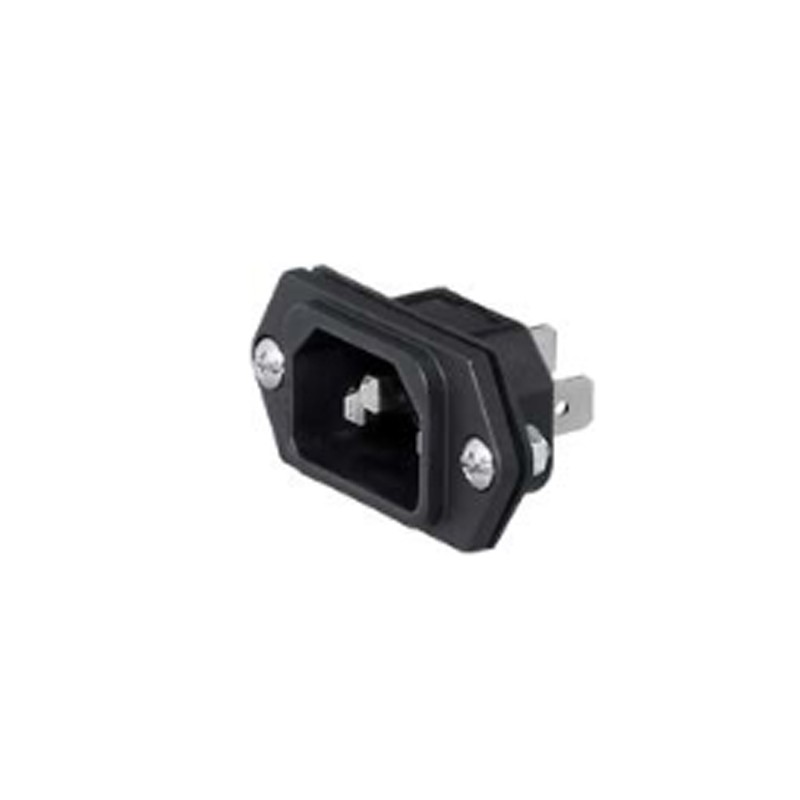

Schurter IEC connector series 6100-3

IEC appliance inlets C14 with protection class I. These devices are suitable for panel mounting (screw-on) and have solder/quick connect terminals. They are suitable for a pin temperature of up to 70°C and are IP40 rated. We offer various types of this Schurter series.

  • rated voltage: 250V AC
  • rated current: 10A
  • dielectric strength: >2kV AC
  • operating temperature: -25 to +70°C

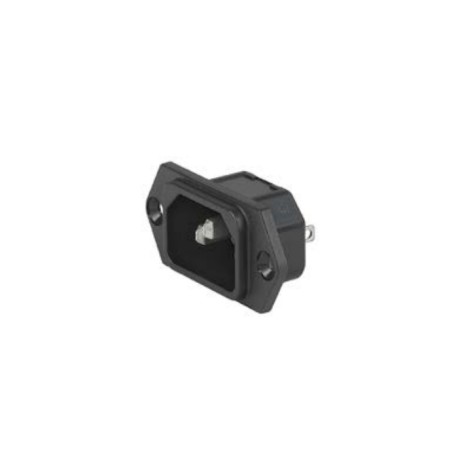

3-144-633, Schurter IEC appliance inlets, 70°C, screw-on mounting, 6100-3 series

3-144-634

245213 3-144-634 3-144-634 Schurter IEC connector series 6100-3. IEC appliance inlets C14 with protection class I. These devices are suitable for panel mounting (screw-on) and have solder/quick connect terminals. They are suitable for a pin temperature of up to 70°C and are IP40 rated. We offer various types of this Schurter series. rated voltage: 250V AC rated current: 10A dielectric strength: >2kV AC operating temperature: -25 to +70°C

Specifications

manufacturer
Manufacturer's name 3-144-634
Data Sheet

Unit price

0,963 €

Stock: 100
Further delivery:
CW 05/2025

Minimum order quantity 20 units or
multiples of 20.
