3-137-753

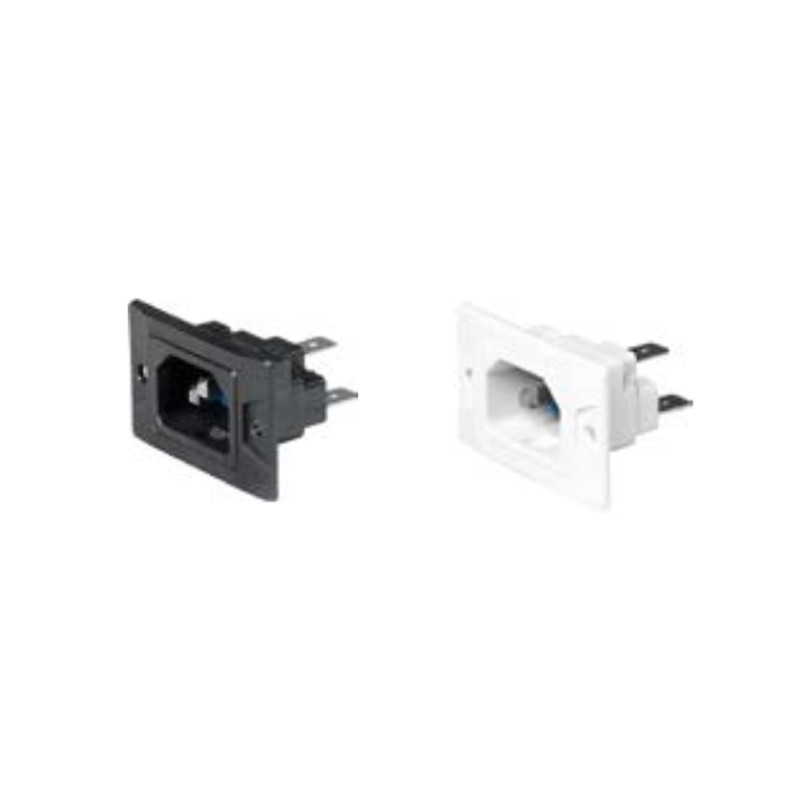

Schurter IEC connector series 6080

IEC appliance inlets C14 / C18 suitable for panel mounting (screw-on) and hsnap-in mounting. They are suitable for a pin temperature of up to 70°C and are rated with te following protection classes: 3-134-_: with gasket, protection type IP54 with load, IP67 opposide to the housing and 3-137-_: without gasket, protection type IP20. We offer the following types of this Schuter series: 3-134-880, 3-134-881, 3-134-902, 3-134-903, 3-137-731, 3-137-752, 3-137-753, and 3-137-754.

  • housing material: PA6 (UL94V-0)
  • rated voltage: 250V AC
  • rated current (IEC/ UL/CSA): 10A / 15A
  • dielectric strength: >2,5kV AC (conductor/conductor), >3kV AC (conductor/soil)
  • operating temperature: -25 to +70°C

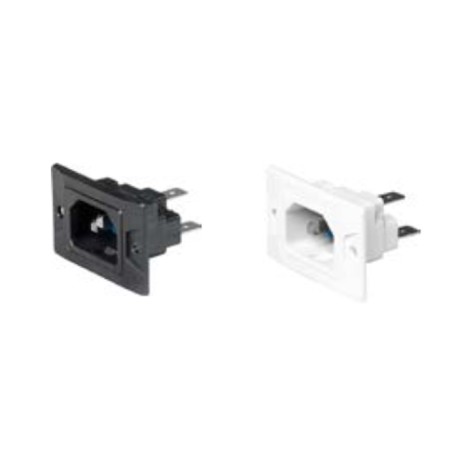

3-137-753, Schurter IEC appliance inlets, 70°C, snap-in mounting, 6080 series

3-137-753

246786 3-137-753 3-137-753 Schurter IEC connector series 6080. IEC appliance inlets C14 / C18 suitable for panel mounting (screw-on) and hsnap-in mounting. They are suitable for a pin temperature of up to 70°C and are rated with te following protection classes: 3-134-_: with gasket, protection type IP54 with load, IP67 opposide to the housing and 3-137-_: without gasket, protection type IP20. We offer the following types of this Schuter series: 3-134-880, 3-134-881, 3-134-902, 3-134-903, 3-137-731, 3-137-752, 3-137-753, and 3-137-754. housing material: PA6 (UL94V-0) rated voltage: 250V AC rated current (IEC/ UL/CSA): 10A / 15A dielectric strength: >2,5kV AC (conductor/conductor), >3kV AC (conductor/soil) operating temperature: -25 to +70°C

Specifications

manufacturer
Manufacturer's name 3-137-753
Colour white
Data Sheet

Unit price

2,59 €

Stock: 0
Further delivery:
CW 06/2025

Minimum order quantity 20 units or
multiples of 20.
