5200.0623.1

Schurter RFI filter series 5200

Suppression filters in metal housing with integrated power line connector and 1-pole fuse holder for 5x20mm fuses. These filters are equipped with a spare compartment, a faston plug terminal (6,3x0,8mm) and have a screw-on or snap-in mounting. We offer the following types of this series by Schurter: 5200.0123.1, 5200.0223.1, 5200.0423.1, 5200.0623.1, 5200.0143.1, 5200.0243.1, 5200.0443.1, and 5200.0643.1

  • rated voltage: 125/250V (50/60Hz)
  • dielectric strength, 2s
    • line to ground: >2.7kVDC
    • line to line: >1.7kVDC
  • temperature range: -25 to +85°C
  • protection class (IEC 600068-1): HPF (25/085/21)

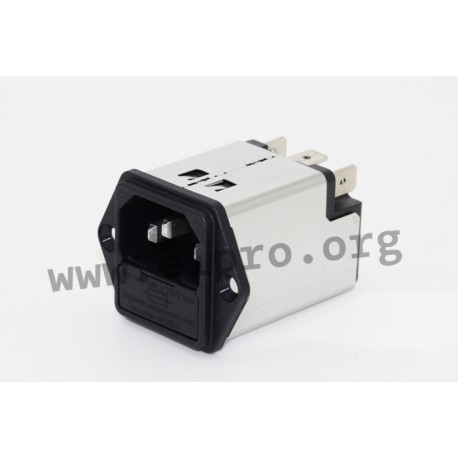

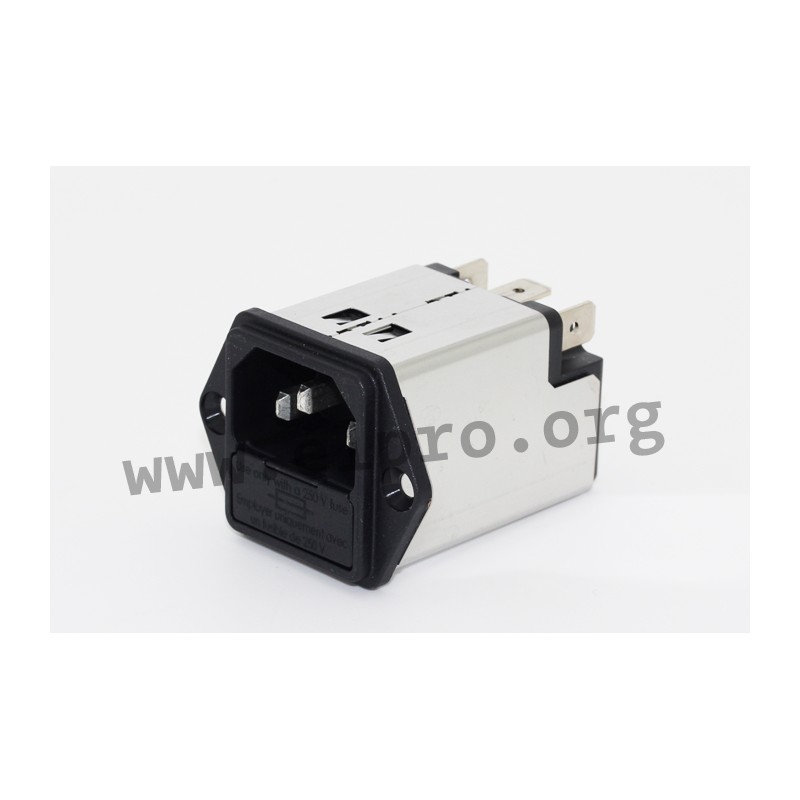

5200.0623.1, Schurter RFI filters, with IEC plug and fuse holder, 5200 series

5200.0623.1

246273 5200.0623.1 5200.0623.1 Schurter RFI filter series 5200. Suppression filters in metal housing with integrated power line connector and 1-pole fuse holder for 5x20mm fuses. These filters are equipped with a spare compartment, a faston plug terminal (6,3x0,8mm) and have a screw-on or snap-in mounting. We offer the following types of this series by Schurter: 5200.0123.1, 5200.0223.1, 5200.0423.1, 5200.0623.1, 5200.0143.1, 5200.0243.1, 5200.0443.1, and 5200.0643.1 rated voltage: 125/250V (50/60Hz) dielectric strength, 2s line to ground: >2.7kVDC line to line: >1.7kVDC temperature range: -25 to +85°C protection class (IEC 600068-1): HPF (25/085/21)

Specifications

manufacturer
Manufacturer's name 5200.0623.1
CX [nF] 47
inductance [mH] 2x0,7
CY [nF] 2,2
Rated current [A] 6
Data Sheet

Unit price

15,09 €

Stock: 0
Further delivery:
CW 06/2025

Minimum order quantity 10 units or
multiples of 10.
