5130.0000

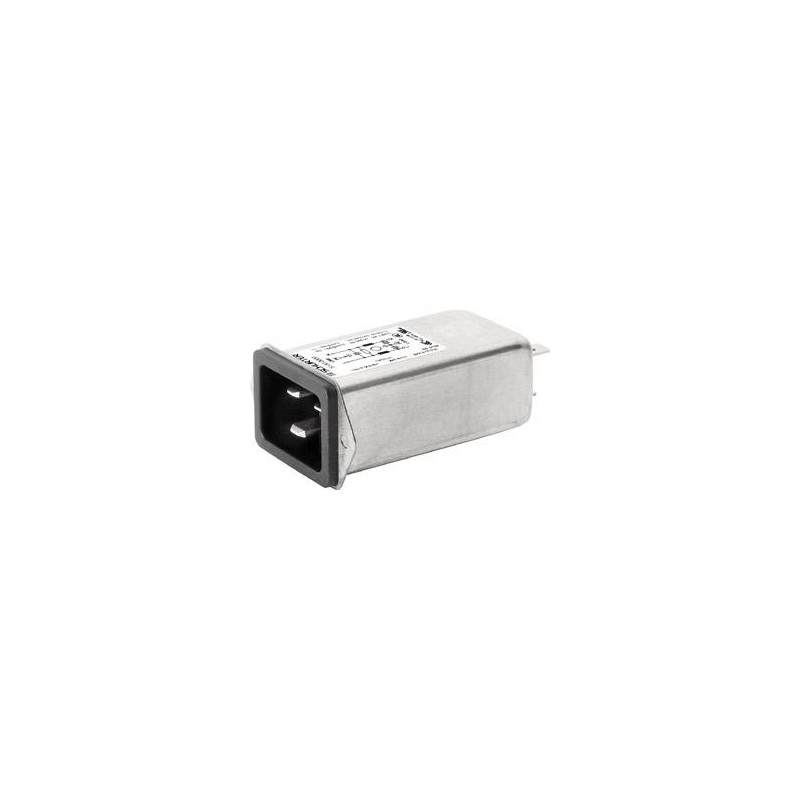

Schurter RFI filter series 5130

RFI filters in a metal housing with an IEC plug (C20), protection class I and a 6,3x0,8mm faston connector. These line filters have screw terminals and a good attenuation. We offer the type 5130.0000 of this Schurter series.

  • rated current: 16A
  • dielectric strength line/earth: >2,7kV DC
  • dielectric strength line/neutral: >1,7kV DC
  • operating temperature: -25 to +85°C
5130.00_

5130.0000

32568 5130.0000 5130.0000 Schurter RFI filter series 5130. RFI filters in a metal housing with an IEC plug (C20), protection class I and a 6,3x0,8mm faston connector. These line filters have screw terminals and a good attenuation. We offer the type 5130.0000 of this Schurter series. rated current: 16A dielectric strength line/earth: >2,7kV DC dielectric strength line/neutral: >1,7kV DC operating temperature: -25 to +85°C

Specifications

manufacturer
Manufacturer's name 5130.0000
Inductance [µH] 2x0,6
CX [µF] 0,1
Leakage current [mA] 0,5
CY [pF] 2200
Data Sheet

Unit price

13,89 €

Stock: 17
Next incoming goods:
CW 48/2024
20 units

Further delivery:
CW 38/2025
