Manufacturers

1064-X-B881-A-3004

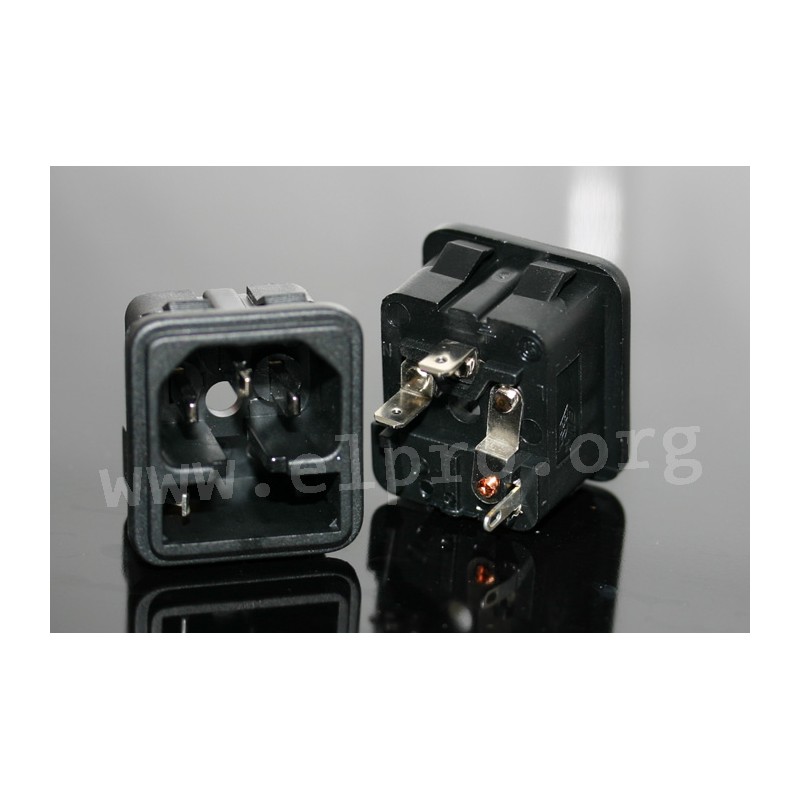

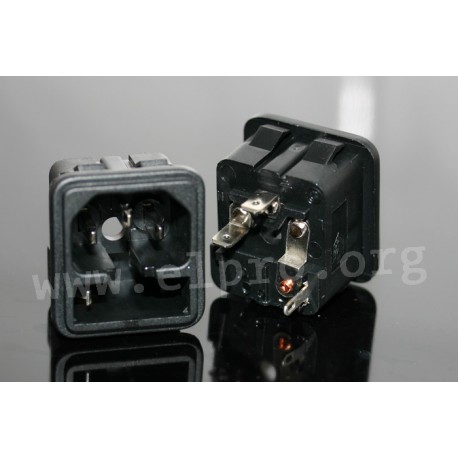

Schurter appliance inlet series 1064

  • IEC appliance inlets (C14) in black
  • with a fuse holder for a fuse link (5x20mm) and a 4,8mm tab terminal
  • suitable for snap-in mounting
  • number of poles: 2+PE
  • continuous current: 10A
  • fuse holder: 6,3A
  • pin temperature: 70°C
  • rated voltage: 250V AC

1064-X-B881-A-3004

30220 1064-X-B881-A-3004 4304.6026 4304.6026 Schurter appliance inlet series 1064. IEC appliance inlets (C14) in black with a fuse holder for a fuse link (5x20mm) and a 4,8mm tab terminal suitable for snap-in mounting number of poles: 2+PE continuous current: 10A fuse holder: 6,3A pin temperature: 70°C rated voltage: 250V AC

Specifications

manufacturer
Manufacturer's name 4304.6026
Data Sheet

Unit price

3,29 €

Stock: 677
Further delivery:
CW 06/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
