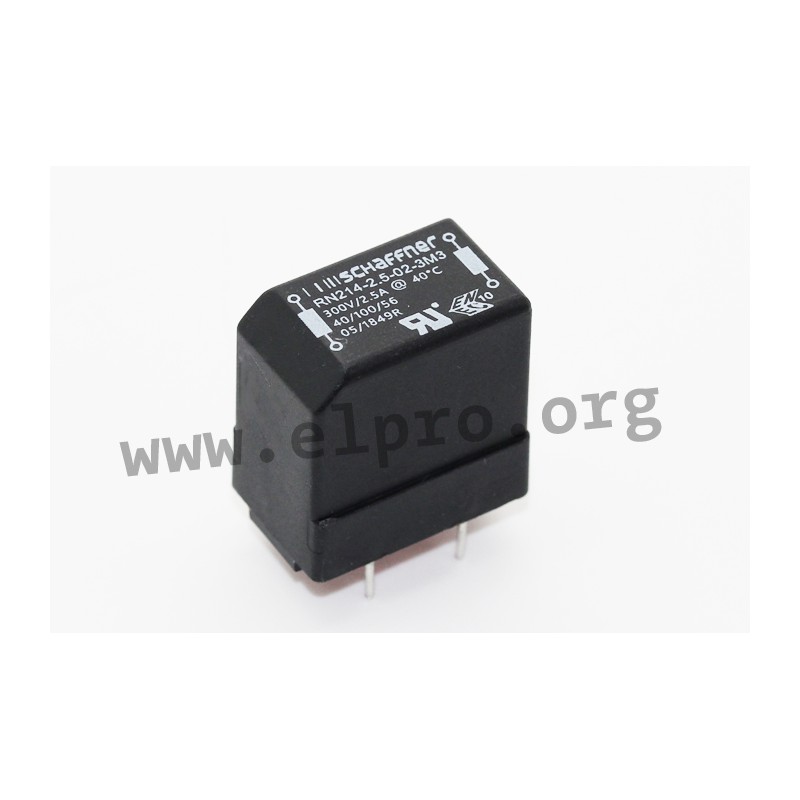

RN214-1.5-02-6M8

Schaffner choke series RN

Current-compensated chokes in a fully potted housing with an excellent thermal behaviour and a high saturation resistance. These common mode chokes are suitable for PCB mounting and offer the option of dual-choke configurations. They have a compact design and comply with UL 1283 as well as EN60938-1. We offer various types of this Schaffner series.

  • rated current: 0,3 to 6A
  • operating voltage: 300V AC
  • operating frequency: DC to 400Hz
  • operating temperature: -40 to +100°C

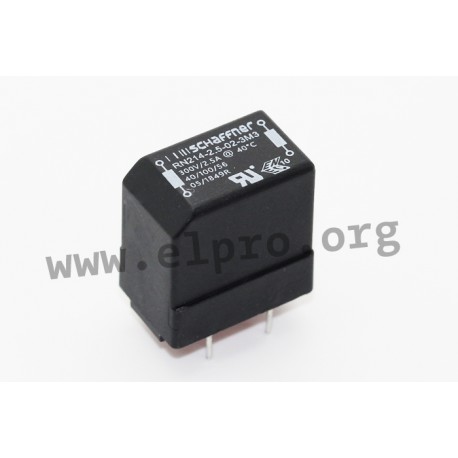

RN214-1.5-02-6M8, Schaffner current-compensated chokes, fully potted, vertical, RN series

RN214-1.5-02-6M8

122434 RN214-1.5-02-6M8 RN214-1.5-02-6M8 Schaffner choke series RN. Current-compensated chokes in a fully potted housing with an excellent thermal behaviour and a high saturation resistance. These common mode chokes are suitable for PCB mounting and offer the option of dual-choke configurations. They have a compact design and comply with UL 1283 as well as EN60938-1. We offer various types of this Schaffner series. rated current: 0,3 to 6A operating voltage: 300V AC operating frequency: DC to 400Hz operating temperature: -40 to +100°C

Specifications

manufacturer
Manufacturer's name RN214-1.5-02-6M8
inductance [mH] 6,8
Rated current [A] 1,5
Data Sheet

Unit price

1,38 €

Stock: 128
Further delivery:
CW 15/2025

Minimum order quantity 5 units or
multiples of 5.
