FN9264B-6-06

Schaffner RFI filter series FN 9264 / FN9264B

RFI filters in a metal housing with a 2-pole rocker switch, an IEC plug and a faston connector (6,3x0,8mm). These line filters have a good attenuation and mounting flanges. We offer the following types of this Schaffner series: FN9264-1-06, FN9264-2-06, FN9264-4-06, FN9264-6-06, FN9264-10-06, FN9264B-1-06, FN9264B-2-06, FN9264B-4-06, FN9264B-6-06, and FN9264B-10-06.

  • rated current: 1 to 10A
  • dielectric strength line/ground: 2kVAC
  • dielectric strength line/neutral: 0,76kV AC
  • operating temperature: -25 to +85°C
  • FN9264B_ is suitable for application in medical settings

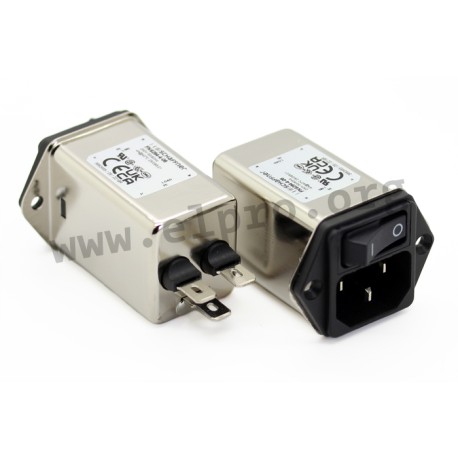

FN9264B-6-06, Schaffner RFI filters, with IEC plug and switch, FN 9264 / FN 9264B series

FN9264B-6-06

246284 FN9264B-6-06 FN9264B-6-06 Schaffner RFI filter series FN 9264 / FN9264B. RFI filters in a metal housing with a 2-pole rocker switch, an IEC plug and a faston connector (6,3x0,8mm). These line filters have a good attenuation and mounting flanges. We offer the following types of this Schaffner series: FN9264-1-06, FN9264-2-06, FN9264-4-06, FN9264-6-06, FN9264-10-06, FN9264B-1-06, FN9264B-2-06, FN9264B-4-06, FN9264B-6-06, and FN9264B-10-06. rated current: 1 to 10A dielectric strength line/ground: 2kVAC dielectric strength line/neutral: 0,76kV AC operating temperature: -25 to +85°C FN9264B_ is suitable for application in medical settings

Specifications

manufacturer
Manufacturer's name FN9264B-6-06
CX [nF] 0,1
inductance [mH] 0,3
Leakage current [µA] 0,00
Rated current [A] 6
Data Sheet

Unit price

18,19 €

Stock: 0
Further delivery:
CW 09/2025

Minimum order quantity 20 units or
multiples of 20.
