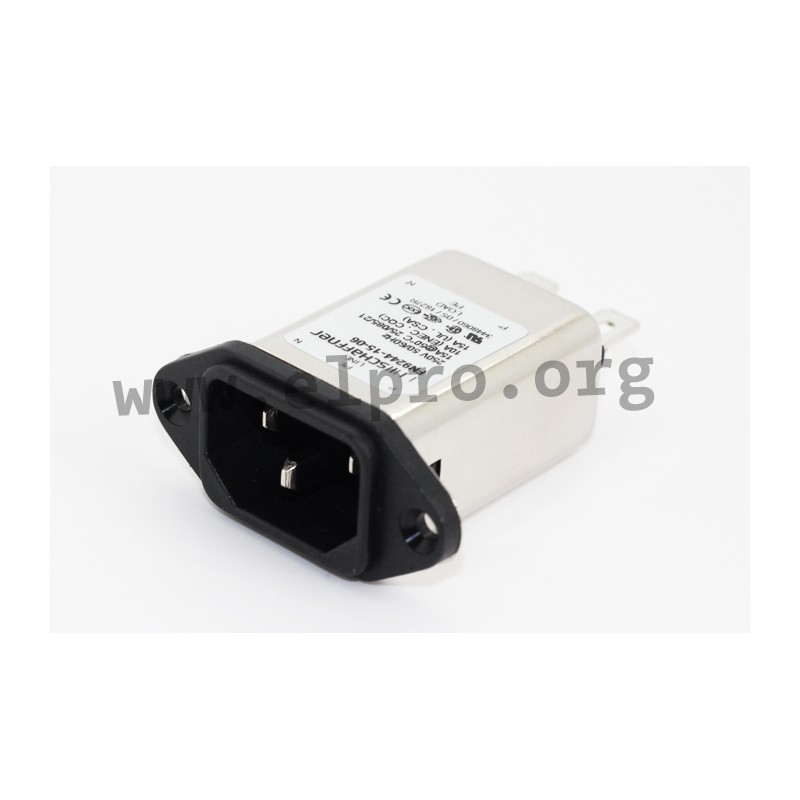

FN9244-15-06

Schaffner RFI filter series FN 9244 / FN 9244B

Radio frequency interference filters in a metal case with a power line connector and a faston connection (6.3x0.8mm). These filters have an exceptional conducted attenuation performance and can be screw mounted from the front or rear side. We offer the following types of this Schaffner series: FN9244-1-06, FN9244-3-06, FN9244-6-06, FN9244-10-06, FN9244-15-06, FN9244B-1-06, FN9244B-3-06, FN9244B-6-06, FN9244B-10-06, and FN9244B-15-06.

  • maximal continuous operating voltage: 250V AC (50/60Hz)
  • dielectric strength line to ground (2sec): 2kV AC
  • dielectric strength line to ground B-Type (2sec): 2,5kV AC
  • dielectric strength line to neutral (2sec): 1kV AC
  • temperature range: -25 to +85°C
  • protection class front side: IP40
  • FN9244B_ is suitable for application in medical settings

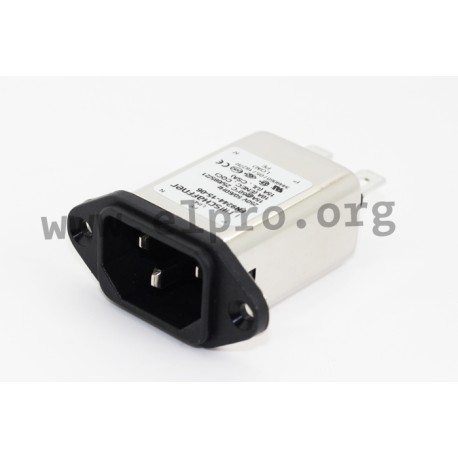

FN9244-15-06, Schaffner RFI filters, with IEC plug, FN 9244 / FN 9244B Serie

FN9244-15-06

116687 FN9244-15-06 FN9244-15-06 Schaffner RFI filter series FN 9244 / FN 9244B. Radio frequency interference filters in a metal case with a power line connector and a faston connection (6.3x0.8mm). These filters have an exceptional conducted attenuation performance and can be screw mounted from the front or rear side. We offer the following types of this Schaffner series: FN9244-1-06, FN9244-3-06, FN9244-6-06, FN9244-10-06, FN9244-15-06, FN9244B-1-06, FN9244B-3-06, FN9244B-6-06, FN9244B-10-06, and FN9244B-15-06. maximal continuous operating voltage: 250V AC (50/60Hz) dielectric strength line to ground (2sec): 2kV AC dielectric strength line to ground B-Type (2sec): 2,5kV AC dielectric strength line to neutral (2sec): 1kV AC temperature range: -25 to +85°C protection class front side: IP40 FN9244B_ is suitable for application in medical settings

Specifications

manufacturer
Manufacturer's name FN9244-15-06
inductance [mH] 0,4
CY [nF] 2,2
Rated current [A] 15
CX [µF] 0,1
Leakage current [mA] 0,31
Data Sheet

Unit price

7,19 €

Stock: 92
Further delivery:
CW 14/2025
