FN9222-10-06

Schaffner RFI filter series FN9222 / FN9222B

RFI filters in a metal housing (IP40) with an IEC plug and a faston connector 6,3x0,8mm. These line filters are suitable for screw mounting and have a good attenuation. They are very reliable and comply with EN60939. We offer the following types of this Schaffner series: FN9222-1-06, FN9222-3-06, FN9222-6-06, FN9222-10-06, FN9222-15-06, FN9222B-1-06, FN9222B-3-06, FN9222B-6-06, FN9222B-10-06, and FN9222B-15-06.

  • rated current: 1 to 15A
  • rated voltage: 250V (50/60Hz)
  • dielectric strength line/ground: 2kV AC
  • dielectric strength line/line: 1kV AC
  • operating temperature: -25 to +85°C
  • FN9222B_ is suitable for application in medical settings

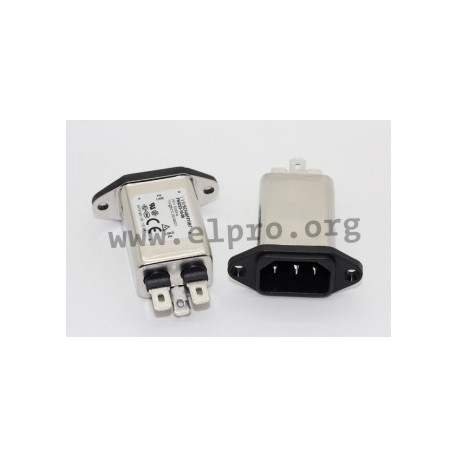

FN9222-10-06, Schaffner RFI filters, with IEC plug and faston connector, FN 9222 / FN 9222B series

FN9222-10-06

116673 FN9222-10-06 FN9222-10-06 Schaffner RFI filter series FN9222 / FN9222B. RFI filters in a metal housing (IP40) with an IEC plug and a faston connector 6,3x0,8mm. These line filters are suitable for screw mounting and have a good attenuation. They are very reliable and comply with EN60939. We offer the following types of this Schaffner series: FN9222-1-06, FN9222-3-06, FN9222-6-06, FN9222-10-06, FN9222-15-06, FN9222B-1-06, FN9222B-3-06, FN9222B-6-06, FN9222B-10-06, and FN9222B-15-06. rated current: 1 to 15A rated voltage: 250V (50/60Hz) dielectric strength line/ground: 2kV AC dielectric strength line/line: 1kV AC operating temperature: -25 to +85°C FN9222B_ is suitable for application in medical settings

Specifications

manufacturer
Manufacturer's name FN9222-10-06
CX [nF] 100
inductance [mH] 0,225
CY [nF] 2,2
Leakage current [µA] 310
Rated current [A] 10
CX [µF] 0,1
Leakage current [mA] 0,31
Data Sheet

Unit price

5,99 €

Stock: 127
Further delivery:
CW 10/2025
