FN410-3-02

Schaffner PCB filter series FN410

Single-phase, two-stage RFI filters in an aluminium housing with a low profile. These line filters are suitable for PCB mounting and have a high attenuation. We offer the following types of this Schaffner series: FN410-0.5-02, FN410-1-02, FN410-3-02 and FN410-6-02.

  • rated current: 0,5 to 6A
  • maximal leakage current: 373mA
  • dielectric strength line/ground: 2kV AC
  • dielectric strength line/line: 760V AC
  • operating temperature: -25 to +100°C

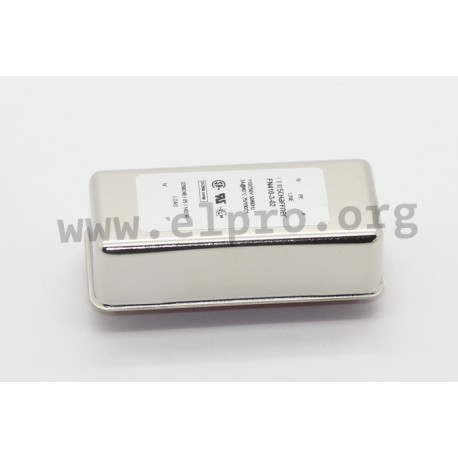

FN410-3-02, Schaffner PCB filters, two-stage, aluminium housing, FN 410 series

FN410-3-02

43865 FN410-3-02 FN410-3-02 Schaffner PCB filter series FN410. Single-phase, two-stage RFI filters in an aluminium housing with a low profile. These line filters are suitable for PCB mounting and have a high attenuation. We offer the following types of this Schaffner series: FN410-0.5-02, FN410-1-02, FN410-3-02 and FN410-6-02. rated current: 0,5 to 6A maximal leakage current: 373mA dielectric strength line/ground: 2kV AC dielectric strength line/line: 760V AC operating temperature: -25 to +100°C

Specifications

manufacturer
Manufacturer's name FN410-3-02
CX [nF] 33
inductance [mH] 2/2
CY [nF] 2,2
Leakage current [µA] 373000
Rated current [A] 3
Data Sheet

Unit price

27,39 €

Stock: 25
Further delivery:
CW 11/2025
