FN282B-4-06

Schaffner RFI filter series FN 280 / FN 280B

RFI filters in a metal housing with a 2-pole rocker switch, an IEC plug and a fuse holder for two 5x20mm fuses. These line filters are suitable for screw mounting (FN282_/FN284_), snap-in mounting (FN286_) or PCB mounting and have a 6,3x0,8mm tab terminal. We offer the following types of this Schaffner series: FN282-2-06, FN282-4-06, FN282-6-06, FN282-10-06, FN284-1-06, FN284-2-06, FN284-4-06, FN284-6-06, FN284-10-06, FN286-1-06, FN286-2-06, FN286-4-06, FN286-6-06, FN286-10-06, FN282B-1-06, FN282B-2-06, FN282B-4-06, FN282B-6-06, FN282B-10-06, FN284B-1-06, FN284B-2-06, FN284B-4-06, FN284B-6-06, FN284B-10-06, FN286B-1-06, FN286B-2-06, FN286B-4-06, FN286B-6-06, and FN286B-10-06.

  • rated current: 1 to 10A
  • rated voltage: 250V AC (50/60Hz)
  • dielectric strength line/ground: 2kV AC
  • dielectric strength line/line: 0,76kV AC
  • operating temperature: -25 to +85°C
  • FN28_B is suitable for application in medical settings

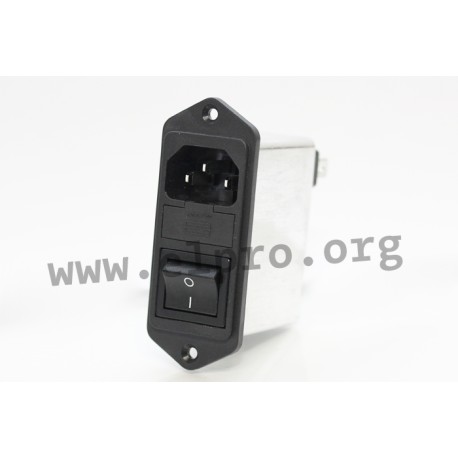

FN282B-4-06, Schaffner RFI filters, with IEC plug, fuse holder and switch, FN 280 / FN 280B series

FN282B-4-06

246288 FN282B-4-06 FN282B-4-06 Schaffner RFI filter series FN 280 / FN 280B. RFI filters in a metal housing with a 2-pole rocker switch, an IEC plug and a fuse holder for two 5x20mm fuses. These line filters are suitable for screw mounting (FN282_/FN284_), snap-in mounting (FN286_) or PCB mounting and have a 6,3x0,8mm tab terminal. We offer the following types of this Schaffner series: FN282-2-06, FN282-4-06, FN282-6-06, FN282-10-06, FN284-1-06, FN284-2-06, FN284-4-06, FN284-6-06, FN284-10-06, FN286-1-06, FN286-2-06, FN286-4-06, FN286-6-06, FN286-10-06, FN282B-1-06, FN282B-2-06, FN282B-4-06, FN282B-6-06, FN282B-10-06, FN284B-1-06, FN284B-2-06, FN284B-4-06, FN284B-6-06, FN284B-10-06, FN286B-1-06, FN286B-2-06, FN286B-4-06, FN286B-6-06, and FN286B-10-06. rated current: 1 to 10A rated voltage: 250V AC (50/60Hz) dielectric strength line/ground: 2kV AC dielectric strength line/line: 0,76kV AC operating temperature: -25 to +85°C FN28_B is suitable for application in medical settings

Specifications

manufacturer
Manufacturer's name FN282B-4-06
CX [nF] 220
inductance [mH] 1
CY [nF] 2,2
Leakage current [µA] 373
Rated current [A] 4
Data Sheet

Unit price

26,59 €

Stock: 0
Further delivery:
CW 16/2025

Minimum order quantity 40 units or
multiples of 40.
