FN2060-12-06

Schaffner RFI filter series FN2060 and FN2070

Single phase RFI filters in a metal housing with a tab terminal (6,3x0,8mm) and a compact size. These two-stage filters are suitable for various applications as well as for a wide operating temperature range. We offer the following types of this Schaffner series: FN2060-1-06, FN2060-3-06, FN2060-6-06, FN2060-10-06, FN2060-12-06, FN2060-16-06, FN2060-20-06, FN2060-30-08, FN2070-1-06, FN2070-3-06, FN2070-10-06 and FN2070-25-08.

  • rated current: 1 to 36A
  • maximal continuous operating voltage: 250V AC (50/60Hz), 250V DC
  • dielectric strength line/ground: 2kV AC
  • dielectric strength line/neutral: 1,1kV DC
  • operating temperature: -25 to +100°C

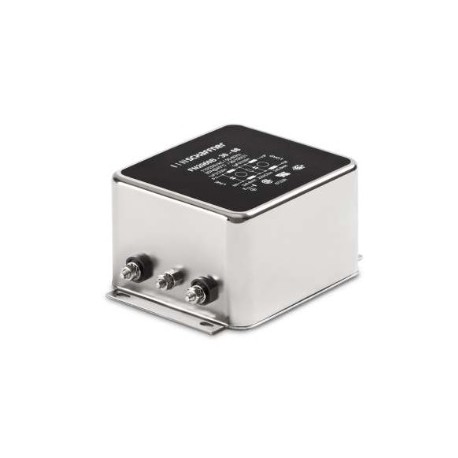

FN2060-12-06,Schaffner RFI filters, with a faston connector, two-stage, FN 660, FN 2060 and FN 2070 series

FN2060-12-06

116742 FN2060-12-06 FN2060-12-06 Schaffner RFI filter series FN2060 and FN2070 . Single phase RFI filters in a metal housing with a tab terminal (6,3x0,8mm) and a compact size. These two-stage filters are suitable for various applications as well as for a wide operating temperature range. We offer the following types of this Schaffner series: FN2060-1-06, FN2060-3-06, FN2060-6-06, FN2060-10-06, FN2060-12-06, FN2060-16-06, FN2060-20-06, FN2060-30-08, FN2070-1-06, FN2070-3-06, FN2070-10-06 and FN2070-25-08. rated current: 1 to 36A maximal continuous operating voltage: 250V AC (50/60Hz), 250V DC dielectric strength line/ground: 2kV AC dielectric strength line/neutral: 1,1kV DC operating temperature: -25 to +100°C

Specifications

manufacturer
Manufacturer's name FN2060-12-06
inductance [mH] 0,58
CY [nF] 4,7
Leakage current [µA] 660
Rated current [A] 12
CX [µF] 0,47
Data Sheet

Unit price

26,39 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 50 units or
multiples of 50.
