3-132-195

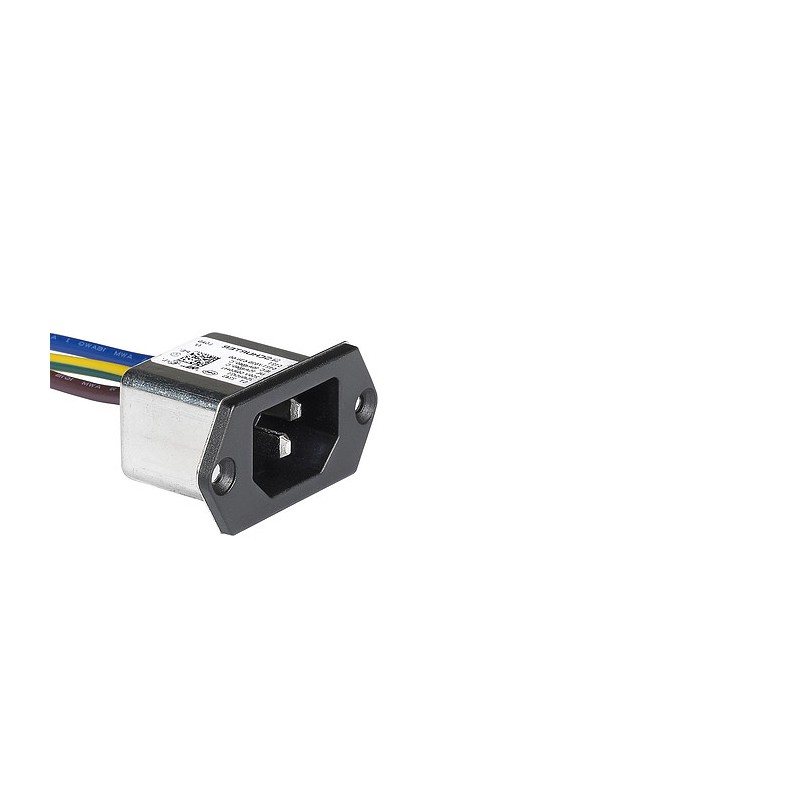

Schaffner RFI filter series 5121

Radio frequency interference filters in a metal housing with an IEC C14 plug, a V-Lock cord retaining and protection class I. These devices are suitable for screw or snap-in mounting as well as for medical technology applications (3-132-195/3-132-199/3-132-197). They are optimally shielded and have a stranded wire connection (150mm). We offer the following types of this Schaffner series: 3-132-192, 3-132-198, 3-132-196, 3-132-195, 3-132-199 and 3-132-197.

  • rated voltage: 250V AC (50/60Hz)
  • dielectric strength line/ground: >2,7kVDC
  • Spannungsfestigkeit line/line: >1,7kVDC
  • operating temperature: -25 to +85°C
  • climatic category (IEC600068-1): HPF (25/085/21)

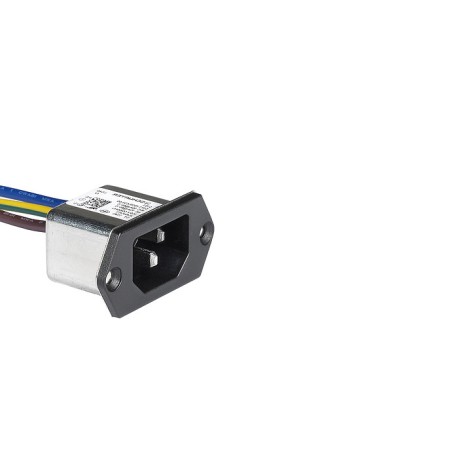

3-132-195, Schaffner RFI filters, with IEC plug, 5121 series

3-132-195

245056 3-132-195 3-132-195 Schaffner RFI filter series 5121. Radio frequency interference filters in a metal housing with an IEC C14 plug, a V-Lock cord retaining and protection class I. These devices are suitable for screw or snap-in mounting as well as for medical technology applications (3-132-195/3-132-199/3-132-197). They are optimally shielded and have a stranded wire connection (150mm). We offer the following types of this Schaffner series: 3-132-192, 3-132-198, 3-132-196, 3-132-195, 3-132-199 and 3-132-197. rated voltage: 250V AC (50/60Hz) dielectric strength line/ground: >2,7kVDC Spannungsfestigkeit line/line: >1,7kVDC operating temperature: -25 to +85°C climatic category (IEC600068-1): HPF (25/085/21)

Specifications

manufacturer
Manufacturer's name 3-132-195
Design Screw-on
CY [nF] 0,47
Rated current [A] 10
Data Sheet

Unit price

9,39 €

Stock: 19
Further delivery:
CW 08/2025
