SLHNNWH629T0
33800
SLHNNWH629T0
SLHNNWH629T0

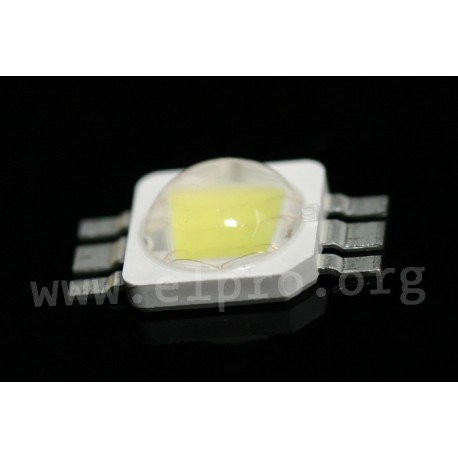

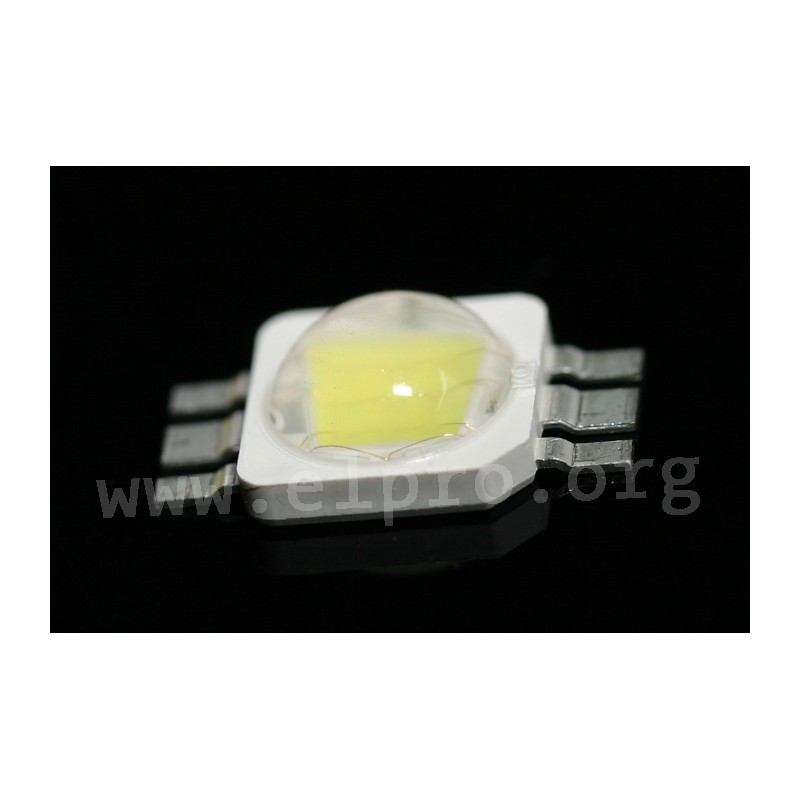

Samsung SMD light-emitting diode series Sunnix 6.
clear high power SMD LEDs
warm or cool white

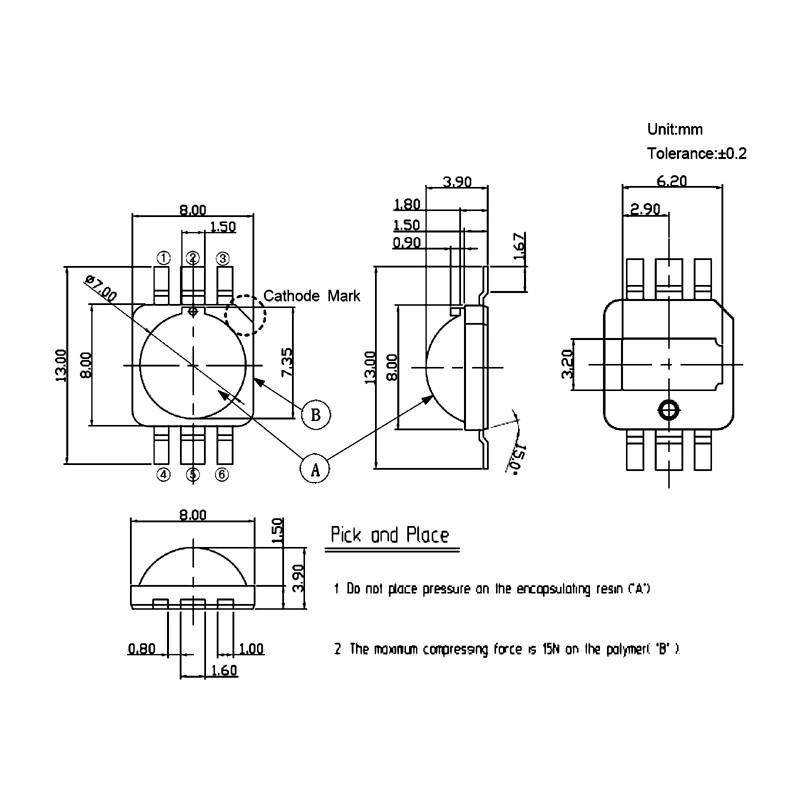

in a 8x8x3,9mm housing
with 9 built-in LED chips
power consumption: 2W
maximal luminous intensity: 180 lumen
operating temperature: -40 to +85°C
Discontinued items. Only remainder of stock available.
Specifications
Colour |
cool white |
Light flux [lm] |
120...180 |
Casing design |
clear |
Forward voltage [V] |
11 |
Diameter [mm] |
SMD |
Forward current [mA] |
180 |
Wavelength [nm] |
- |
Viewing angle [°] |
120 |
