TNX 11

for Ø4.39mm housing cutouts

• pushbutton momentary switch with print or solder terminals
• sealed against dirt and fluxing agent
• particularly suitable for signal applications due to the gold-plated switching contacts
• suitable for use in applications where space is very limited
• switching capacity: 0.4VA at 20V DC
• switching cycles under load: 50'000
• contact resistance: <10mΩ
• insulation resistance: 1000MΩ
• dielectric strength: 1000Veff
• operating temperature: -30...+85°C
• contacts: brass, gold-plated over nickel
• terminals: brass, gold-plated over nickel
• sealing: epoxy
• shell material: diallylphthalate (DAP)

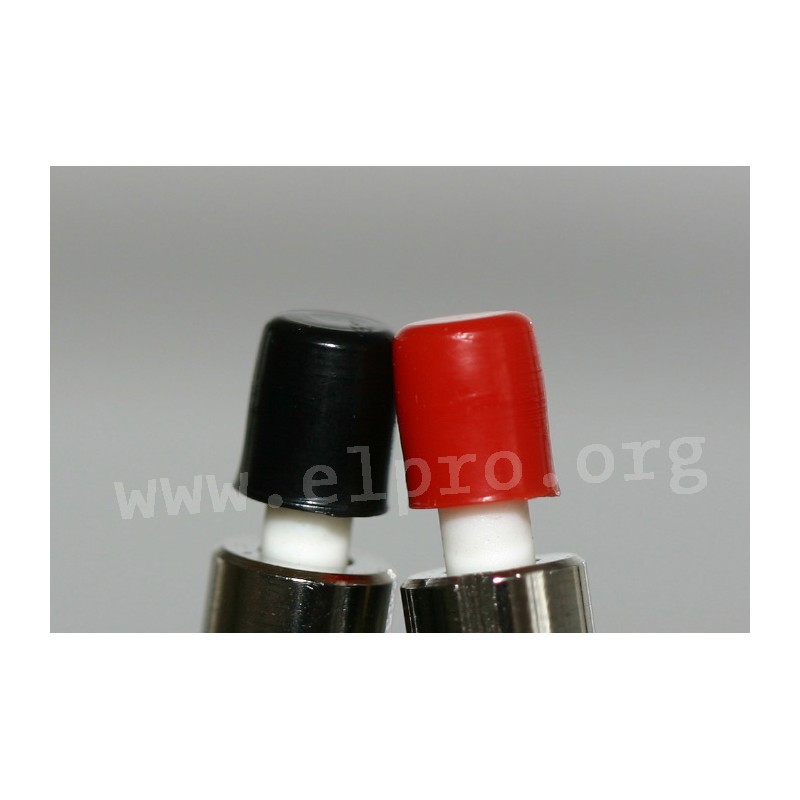

TNX 11: suitable red cap for TNX 6 and TNX 7

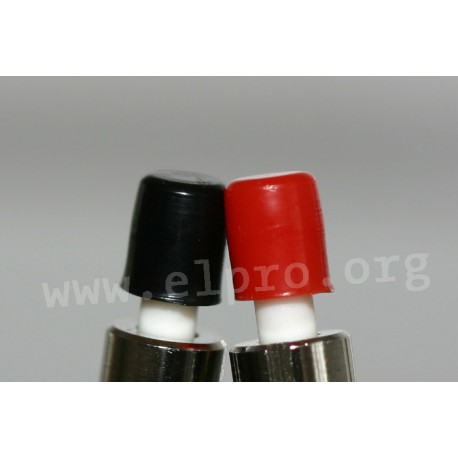

TNX 10 and TNX 11

TNX 11

13335 TNX 11 SH-CF-022-3-H SH-CF-022-3-H for Ø4.39mm housing cutouts. • pushbutton momentary switch with print or solder terminals• sealed against dirt and fluxing agent• particularly suitable for signal applications due to the gold-plated switching contacts• suitable for use in applications where space is very limited• switching capacity: 0.4VA at 20V DC• switching cycles under load: 50'000• contact resistance: &lt;10mΩ• insulation resistance: 1000MΩ• dielectric strength: 1000Veff• operating temperature: -30...+85°C• contacts: brass, gold-plated over nickel• terminals: brass, gold-plated over nickel• sealing: epoxy• shell material: diallylphthalate (DAP)TNX 11: suitable red cap for TNX 6 and TNX 7

Specifications

manufacturer
Manufacturer's name SH-CF-022-3-H
Panel cut-out [mm] Ø 4,39

Unit price

0,077 €

Stock: 613
Further delivery:
CW 10/2025

Minimum order quantity 1 to 3 units or multiples of 5 plus 0 to 3 .
