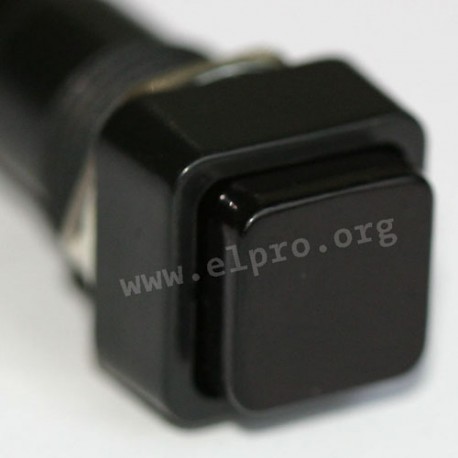

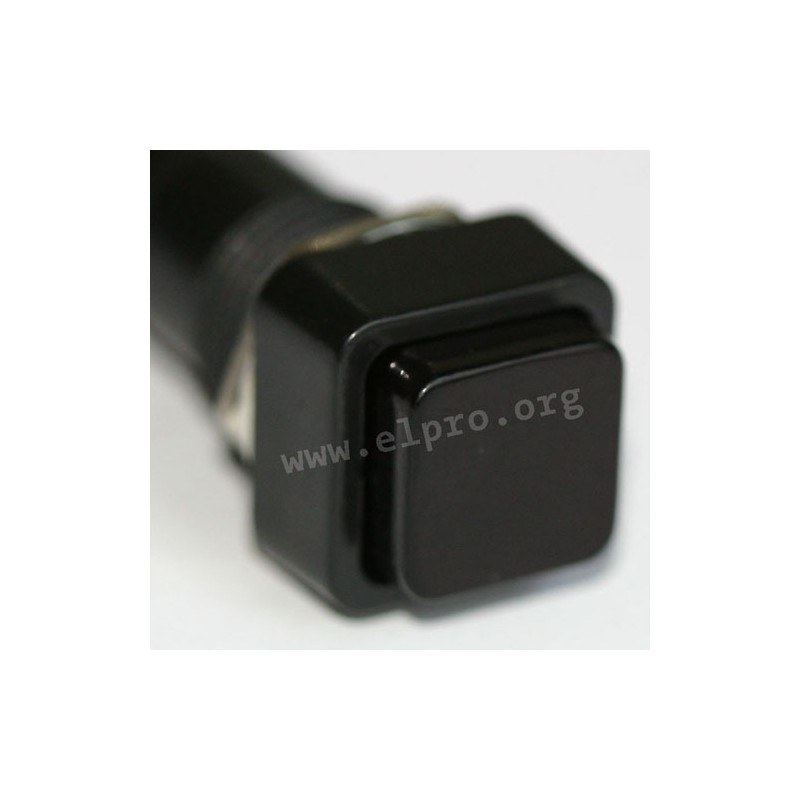

TNX 29

for Ø12mm panel cutouts

• sngle pole universal pushbutton momentary switch, central mounting
• polyester version with square actuator in green, red or black
• switching capacity: 3A/125V AC
• contact resistance: <20mΩ
• insulation resistance: 100MΩ
• test voltage: 1500V AC
• operating life, electrical: >50'000
• operating life, mechanical: >100'000

TNX 29: black

TNX 29

TNX 29

13354 TNX 29 R18-23B-2-H R18-23B-2-H for Ø12mm panel cutouts. • sngle pole universal pushbutton momentary switch, central mounting• polyester version with square actuator in green, red or black• switching capacity: 3A/125V AC• contact resistance: &lt;20mΩ• insulation resistance: 100MΩ• test voltage: 1500V AC• operating life, electrical: &gt;50'000• operating life, mechanical: &gt;100'000TNX 29: black

Specifications

manufacturer
Manufacturer's name R18-23B-2-H
Switching current [A] 3
Panel cut-out [mm] Ø 12

Unit price

0,713 €

Stock: 796
Next incoming goods:
CW 51/2024
500 units

Further delivery:
CW 10/2025

Minimum order quantity 1 to 21 units or multiples of 25 plus 0 to 21 .
