TNX 28

for Ø12mm panel cutouts

• sngle pole universal pushbutton momentary switch, central mounting
• polyester version with square actuator in green, red or black
• switching capacity: 3A/125V AC
• contact resistance: <20mΩ
• insulation resistance: 100MΩ
• test voltage: 1500V AC
• operating life, electrical: >50'000
• operating life, mechanical: >100'000

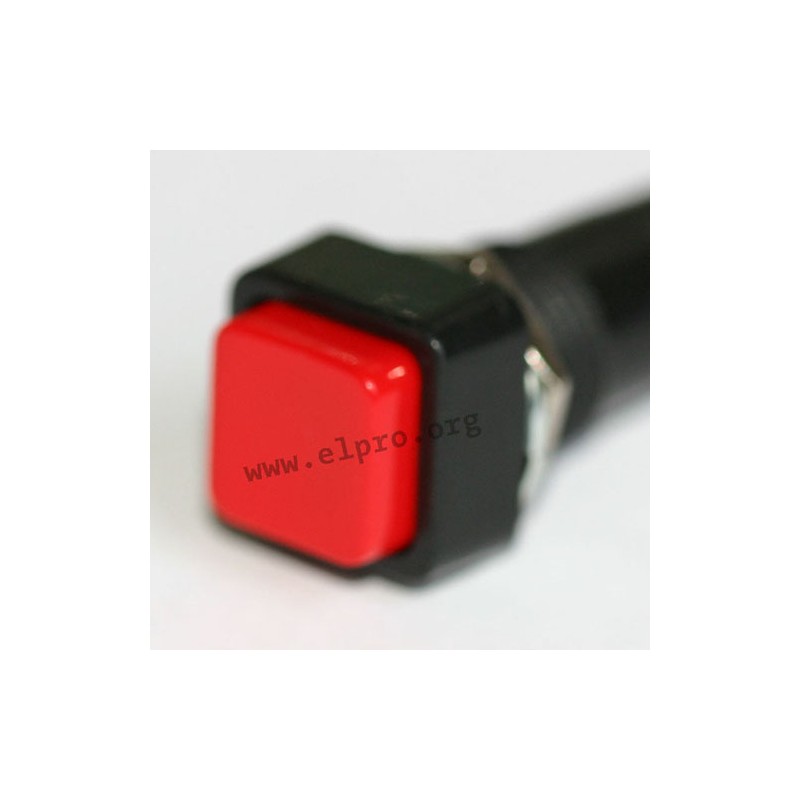

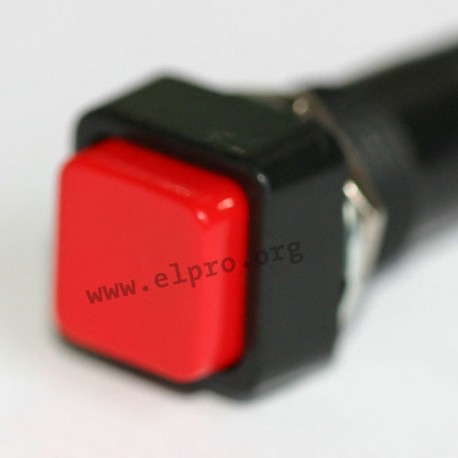

TNX 28: red

TNX 28

TNX 28

13353 TNX 28 R18-23B-3-H R18-23B-3-H for Ø12mm panel cutouts. • sngle pole universal pushbutton momentary switch, central mounting• polyester version with square actuator in green, red or black• switching capacity: 3A/125V AC• contact resistance: &lt;20mΩ• insulation resistance: 100MΩ• test voltage: 1500V AC• operating life, electrical: &gt;50'000• operating life, mechanical: &gt;100'000TNX 28: red

Specifications

manufacturer
Manufacturer's name R18-23B-3-H
Switching current [A] 3
Panel cut-out [mm] Ø 12

Unit price

0,713 €

Stock: 600
Next incoming goods:
CW 51/2024
1000 units

Further delivery:
CW 10/2025

Minimum order quantity 25 units or
multiples of 25.
