> Passive elements>Switches/keys>Pushbuttons>Salecom pressure switches, 3A, for Ø12mm panel cut-out, R-18-23A series>TNX 3

Manufacturers

TNX 3

for Ø12mm panel cutouts

• single pole universal pushbutton switch with central mounting
• polyester version
• with square pushbutton in green, red or black
• switching capacity: 125V AC/3A
• contact resistance: <20mΩ
• insulation resistance: 100MΩ
• test voltage: 1500V AC
• operating life, electrical: >50'000
• operating life, mechanical: >100'000

TNX 3: black button, ON-OFF

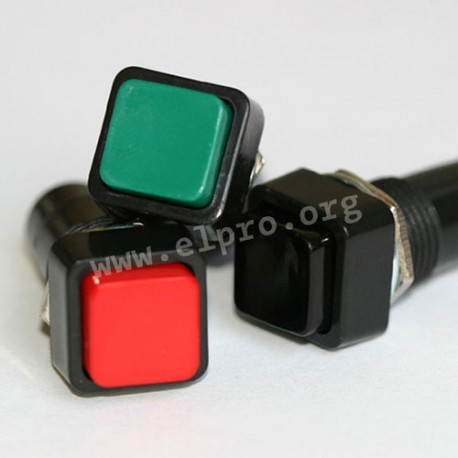

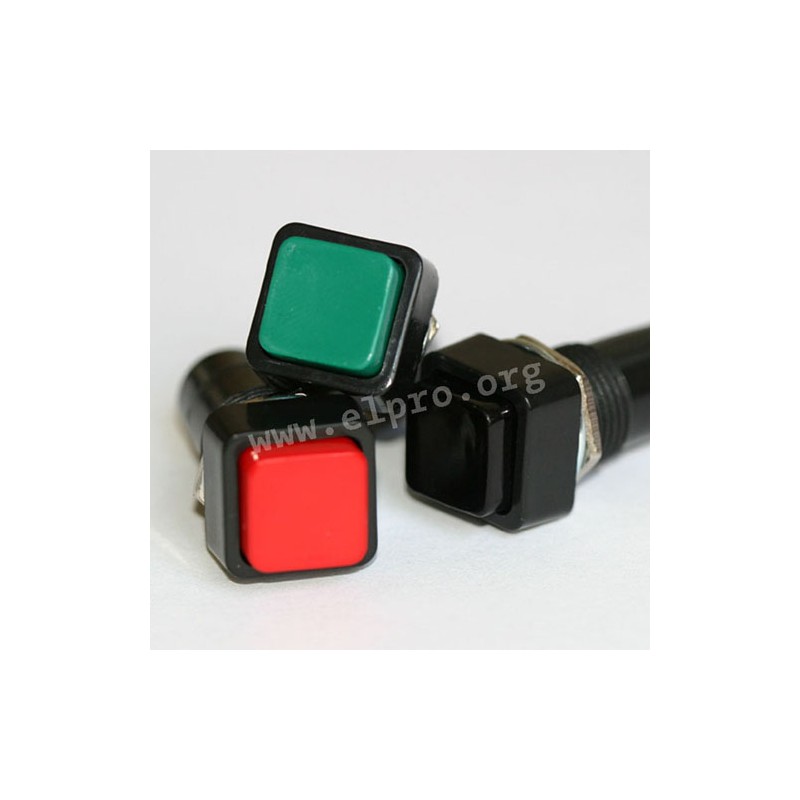

TNX 1, TNX 2, TNX 3

TNX 3

13355 TNX 3 R18-23A-2-H R18-23A-2-H for Ø12mm panel cutouts. • single pole universal pushbutton switch with central mounting• polyester version• with square pushbutton in green, red or black• switching capacity: 125V AC/3A• contact resistance: &lt;20mΩ• insulation resistance: 100MΩ• test voltage: 1500V AC• operating life, electrical: &gt;50'000• operating life, mechanical: &gt;100'000TNX 3: black button, ON-OFF

Specifications

manufacturer
Manufacturer's name R18-23A-2-H
Switching current [A] 3
Panel cut-out [mm] Ø12

Unit price

0,713 €

Stock: 799
Next incoming goods:
CW 51/2024
1000 units

Further delivery:
CW 10/2025

Minimum order quantity 1 to 24 units or multiples of 25 plus 0 to 24 .
