> Passive elements>Switches/keys>Pushbuttons>Salecom pressure switches, 3A, for Ø12mm panel cut-out, R-18-23A series>TNX 2

Manufacturers

TNX 2

for Ø12mm panel cutouts

• single pole universal pushbutton switch with central mounting
• polyester version
• with square pushbutton in green, red or black
• switching capacity: 125V AC/3A
• contact resistance: <20mΩ
• insulation resistance: 100MΩ
• test voltage: 1500V AC
• operating life, electrical: >50'000
• operating life, mechanical: >100'000

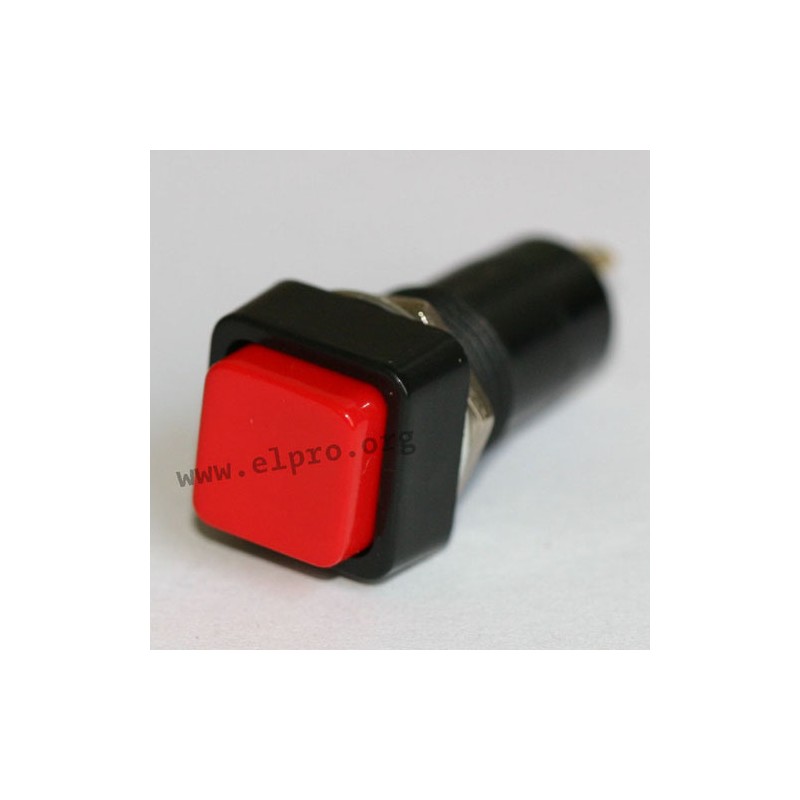

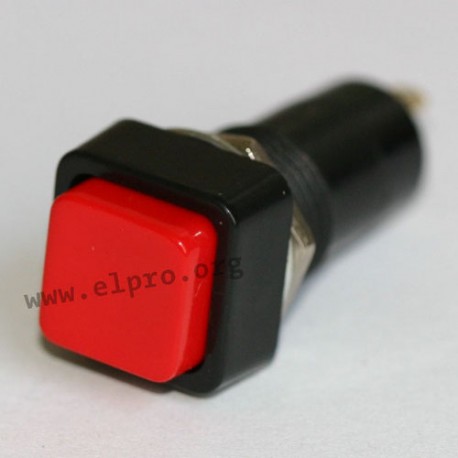

TNX 2: red button, ON-OFF

TNX 2

TNX 2

13344 TNX 2 R18-23A-3-H R18-23A-3-H for Ø12mm panel cutouts. • single pole universal pushbutton switch with central mounting• polyester version• with square pushbutton in green, red or black• switching capacity: 125V AC/3A• contact resistance: &lt;20mΩ• insulation resistance: 100MΩ• test voltage: 1500V AC• operating life, electrical: &gt;50'000• operating life, mechanical: &gt;100'000TNX 2: red button, ON-OFF

Specifications

manufacturer
Manufacturer's name R18-23A-3-H
Switching current [A] 3
Panel cut-out [mm] Ø12

Unit price

0,713 €

Stock: 1587
Next incoming goods:
CW 51/2024
1000 units

Further delivery:
CW 10/2025

Minimum order quantity 1 to 12 units or multiples of 25 plus 0 to 12 .
