LT3-15-B5-H

tact switches and indicators LT1, LT3 by Salecom

• contacts: 1xSPST-NΩ
• illuminated, single pole momentary PCB switches with an SPST contact
• positive tactile feedback
• colours: red, green or yellow
• matching PCB indicators in red, green or yellow
• momentary PCB switch
• switching capacity, max.: 100mA, 42VAC/DC
• test voltage (50Hz, 1 min.): >2000VAC
• operating life at max. switching capacity: >105 operations
• contact resistance: <100mΩ
• insulation resistance: >108Ω
• pperating force, max.: 3N ±0,75N
• PCB indicator reverse voltage: 5V
• PCB indicator reverse current: 10µA
• operating temperature: -40...+85°C
• by Salecom

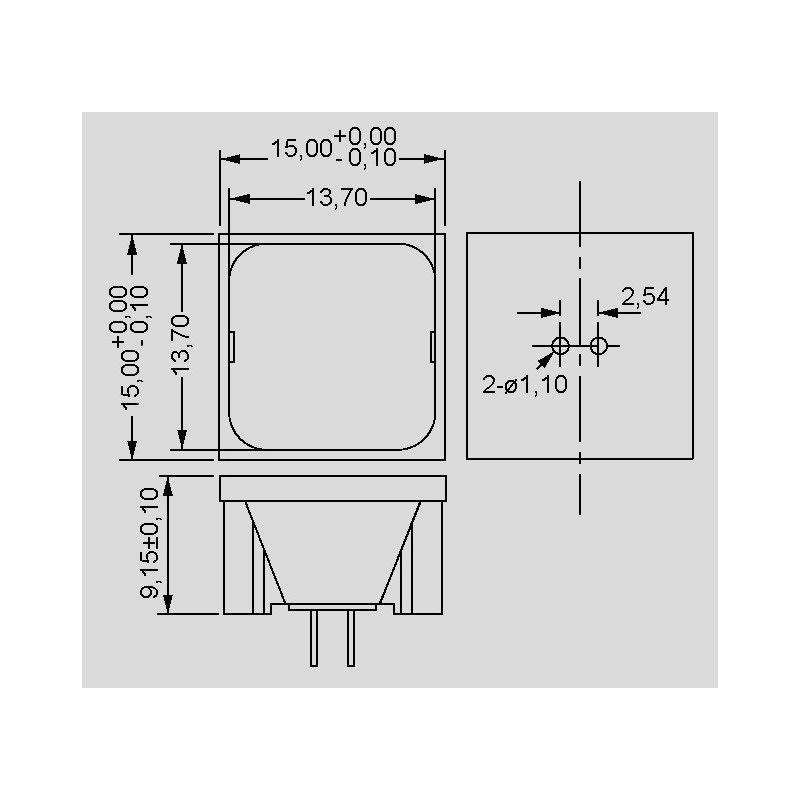

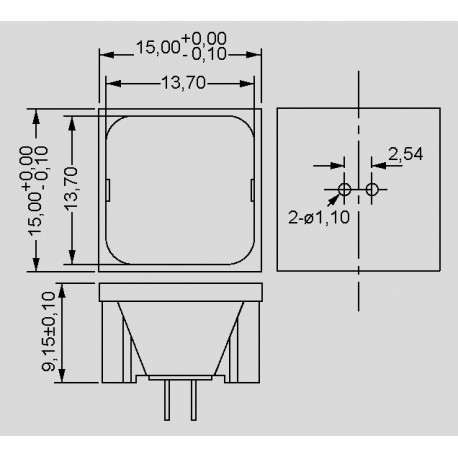

dimensions LT3_

LT3-15-B5-H

39796 LT3-15-B5-H LT3-15-B5-H tact switches and indicators LT1, LT3 by Salecom. * contacts: 1xSPST-NΩ* illuminated, single pole momentary PCB switches with an SPST contact* positive tactile feedback* colours: red, green or yellow* matching PCB indicators in red, green or yellow* momentary PCB switch* switching capacity, max.: 100mA, 42VAC/DC* test voltage (50Hz, 1 min.): &gt;2000VAC* operating life at max. switching capacity: &gt;105 operations* contact resistance: &lt;100mΩ* insulation resistance: &gt;108Ω* pperating force, max.: 3N ±0,75N* PCB indicator reverse voltage: 5V* PCB indicator reverse current: 10µA* operating temperature: -40...+85°C* by Salecom

Specifications

manufacturer
Manufacturer's name LT3-15-B5-H
Colour yellow
Switch positions indicator
D x L [mm] 15 x 15
Plug size [mm] -
Operating force [N] 3

Unit price

0,864 €

Stock: 120
Further delivery:
CW 27/2025

Minimum order quantity 10 units or
multiples of 10.
