> Passive elements>Switches/keys>Tact switches>Salecom tact switches and displays, 15x15mm, 3N, LT1 and LT3 series>LT3-15-B3-H

Manufacturers

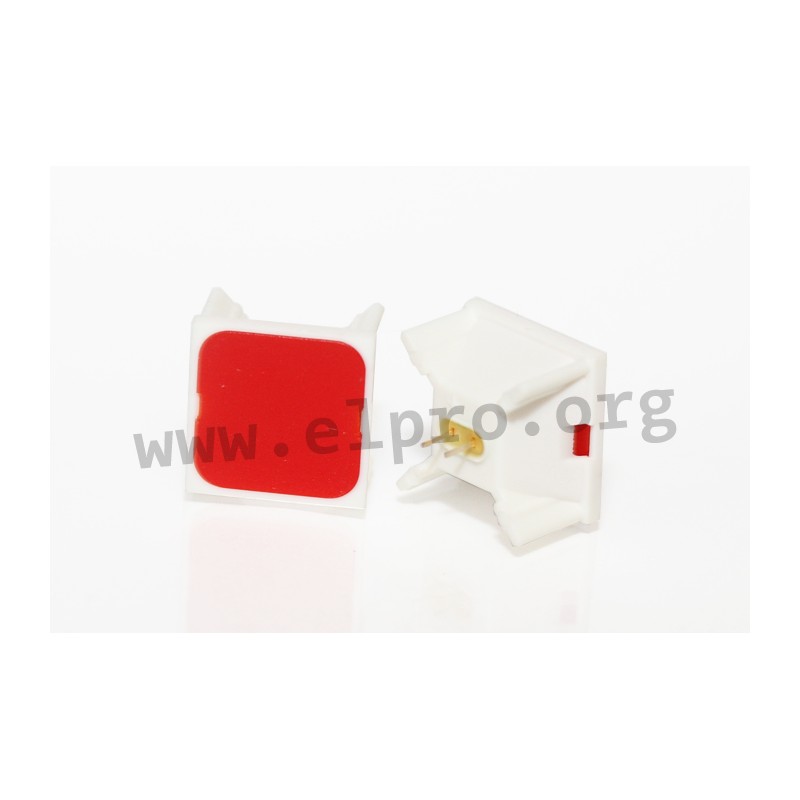

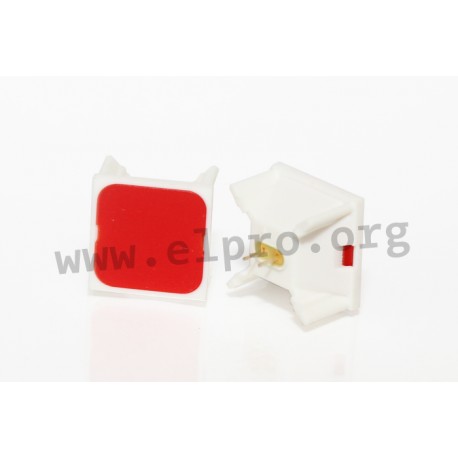

LT3-15-B3-H

tact switches and indicators LT1, LT3 by Salecom

* contacts: 1xSPST-NΩ
* illuminated, single pole momentary PCB switches with an SPST contact
* positive tactile feedback
* colours: red, green or yellow
* matching PCB indicators in red, green or yellow
* momentary PCB switch
* switching capacity, max.: 100mA, 42VAC/DC
* test voltage (50Hz, 1 min.): >2000VAC
* operating life at max. switching capacity: >105 operations
* contact resistance: <100mΩ
* insulation resistance: >108Ω
* pperating force, max.: 3N ±0,75N
* PCB indicator reverse voltage: 5V
* PCB indicator reverse current: 10µA
* operating temperature: -40...+85°C
* by Salecom

LT3-15-B3-H

LT3-15-B3-H

39795 LT3-15-B3-H LT3-15-B3-H tact switches and indicators LT1, LT3 by Salecom. * contacts: 1xSPST-NΩ* illuminated, single pole momentary PCB switches with an SPST contact* positive tactile feedback* colours: red, green or yellow* matching PCB indicators in red, green or yellow* momentary PCB switch* switching capacity, max.: 100mA, 42VAC/DC* test voltage (50Hz, 1 min.): &gt;2000VAC* operating life at max. switching capacity: &gt;105 operations* contact resistance: &lt;100mΩ* insulation resistance: &gt;108Ω* pperating force, max.: 3N ±0,75N* PCB indicator reverse voltage: 5V* PCB indicator reverse current: 10µA* operating temperature: -40...+85°C* by Salecom

Specifications

manufacturer
Manufacturer's name LT3-15-B3-H
Colour red
Switch positions indicator

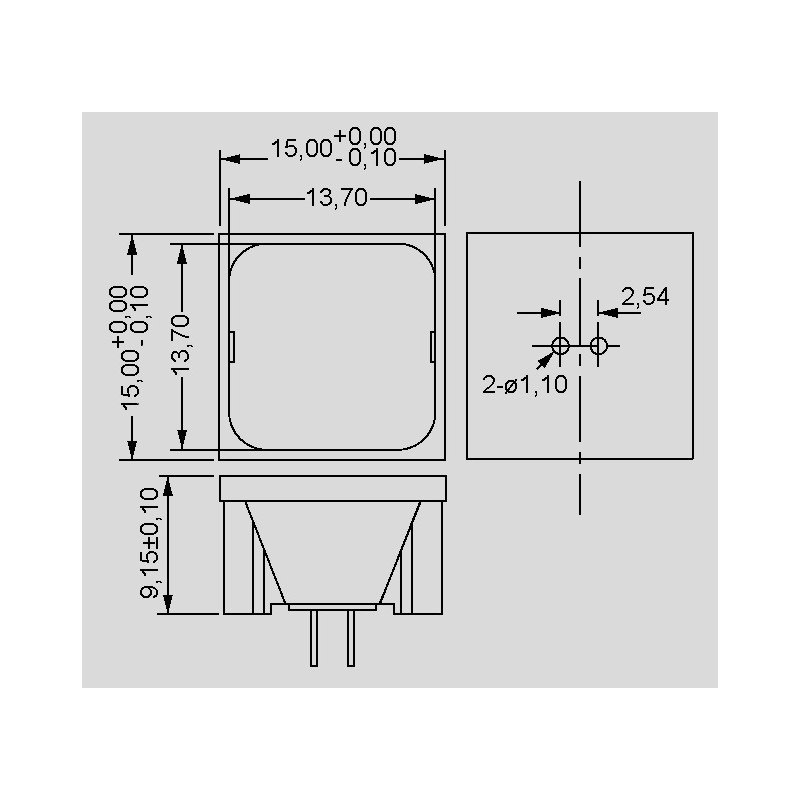

D x L [mm] 15 x 15
Plug size [mm] -
Operating force [N] 3

Unit price

0,864 €

Stock: 120
Further delivery:
CW 10/2025

Minimum order quantity 10 units or
multiples of 10.
