NC 06-4 SMD 22 k

SMD resistor networks MNR14 by Rohm

• housing: 4x0603
• power: 0.063W
• tolerance: 5%
• for high-density mounting
• convex terminations

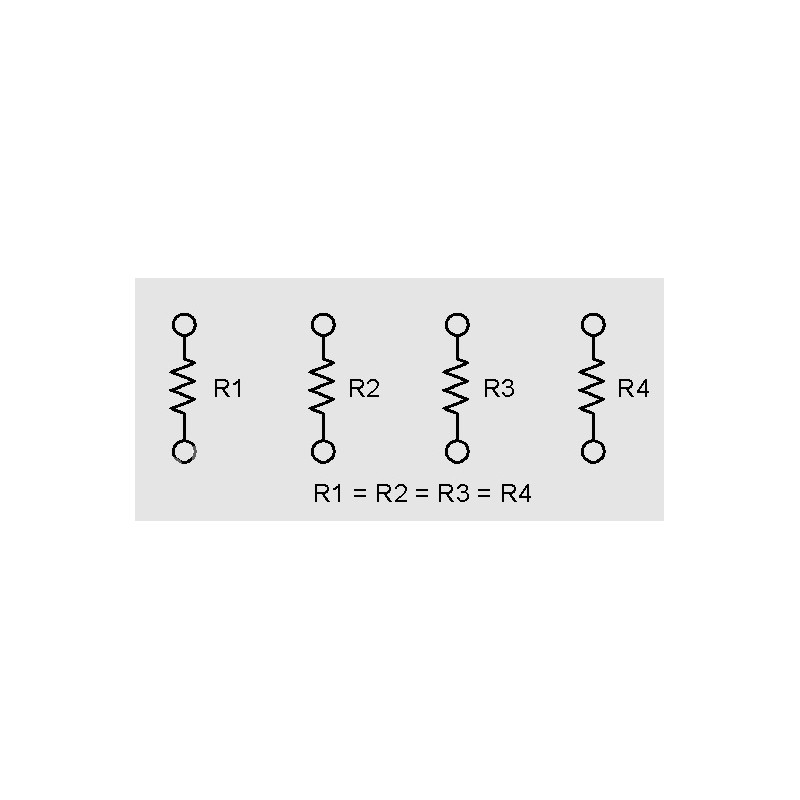

• 8 terminal package with 4 isolated resistors
• operating voltage, max.: 50Vrms


• insulation resistance, min.: 10MΩ
• insulation voltage (1 min): 100V AC/DC
• temperature coefficient: ±200ppm/K
• temperature range: - 55°C...+155°C
• derating: linear from 70°C to 155°C (0W)
• by Rohm

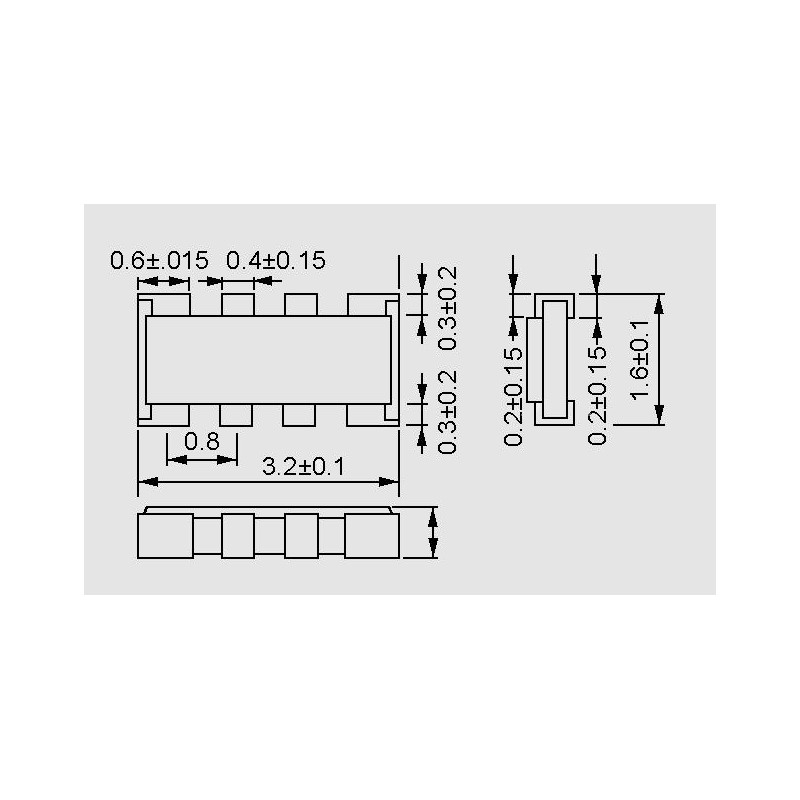

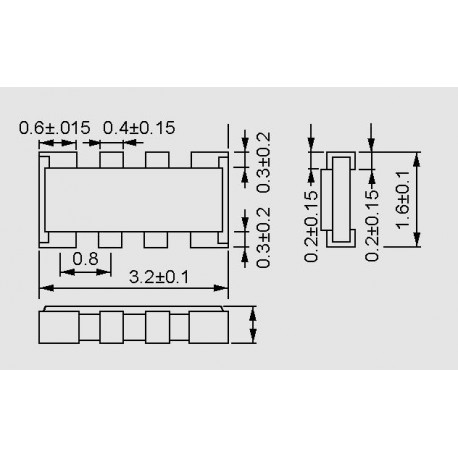

dimensions

NC 06-4 SMD 22 k

14502 NC 06-4 SMD 22 k MNR14E0APJ223 MNR14E0APJ223 SMD resistor networks MNR14 by Rohm. • housing: 4x0603• power: 0.063W• tolerance: 5%• for high-density mounting• convex terminations• 8 terminal package with 4 isolated resistors• operating voltage, max.: 50Vrms • insulation resistance, min.: 10MΩ• insulation voltage (1 min): 100V AC/DC• temperature coefficient: ±200ppm/K• temperature range: - 55°C...+155°C• derating: linear from 70°C to 155°C (0W)• by Rohm

Specifications

manufacturer
Manufacturer's name MNR14E0APJ223
Design 4x0603
Resistance [Ω] 22k
Power [W] 0,063
Tolerance [%] 5
Data Sheet

Unit price

0,0128 €

Stock: 22961
Further delivery:
CW 10/2025

Minimum order quantity 1 to 61 units or multiples of 100 plus 0 to 61 .
