NC 06-4 SMD 100 k

SMD resistor networks MNR14 by Rohm

* housing: 4x0603
* power: 0.063W
* tolerance: 5%
* for high-density mounting
* convex terminations

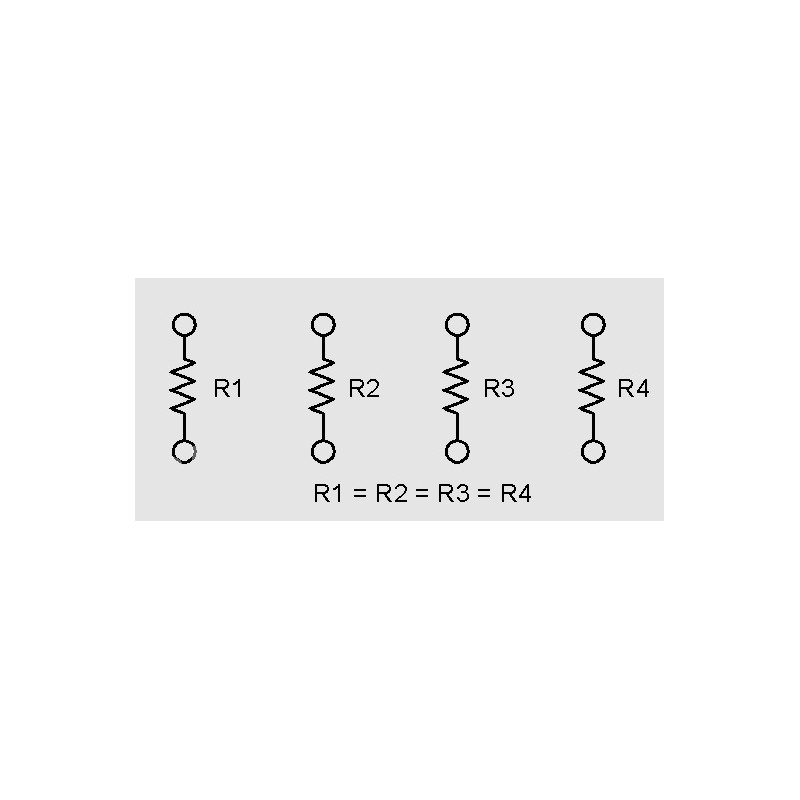

* 8 terminal package with 4 isolated resistors
* operating voltage, max.: 50Vrms
* insulation resistance, min.: 10MΩ
* insulation voltage (1 min): 100V AC/DC
* temperature coefficient: ±200ppm/K
* temperature range: - 55°C...+155°C
* derating: linear from 70°C to 155°C (0W)
* by Rohm

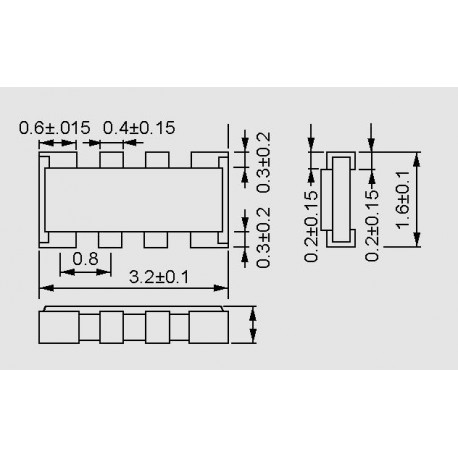

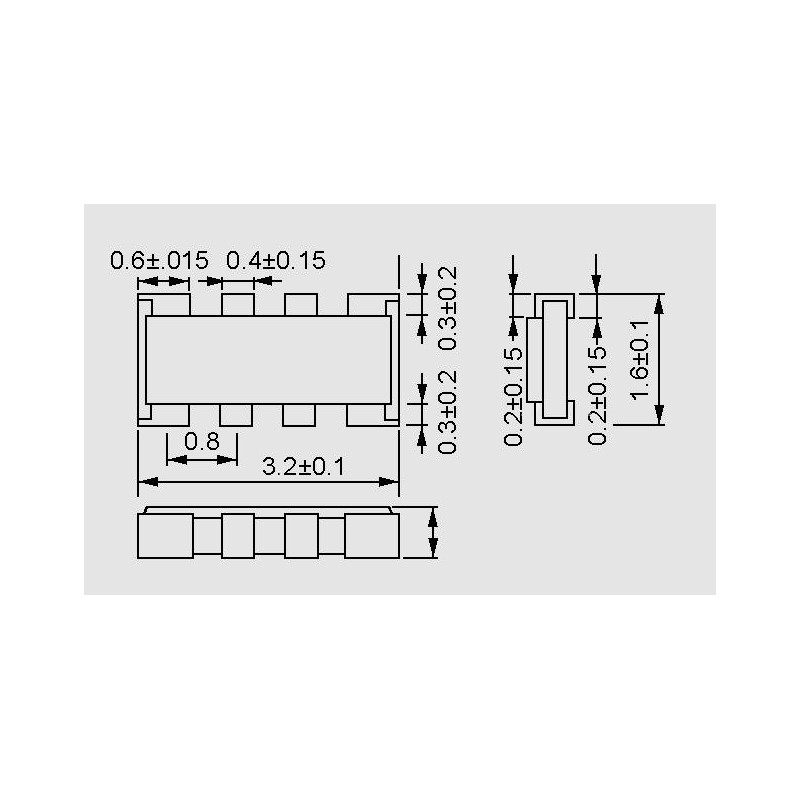

dimensions

NC 06-4 SMD 100 k

14495 NC 06-4 SMD 100 k MNR14E0APJ104 MNR14E0APJ104 SMD resistor networks MNR14 by Rohm. * housing: 4x0603* power: 0.063W * tolerance: 5% * for high-density mounting* convex terminations* 8 terminal package with 4 isolated resistors* operating voltage, max.: 50Vrms* insulation resistance, min.: 10MΩ* insulation voltage (1 min): 100V AC/DC* temperature coefficient: ±200ppm/K* temperature range: - 55°C...+155°C* derating: linear from 70°C to 155°C (0W)* by Rohm

Specifications

manufacturer
Manufacturer's name MNR14E0APJ104
Design 4x0603
Resistance [Ω] 100k
Power [W] 0,063
Tolerance [%] 5
Data Sheet

Unit price

0,0128 €

Stock: 15681
Further delivery:
CW 10/2025

Minimum order quantity 1 to 81 units or multiples of 100 plus 0 to 81 .
