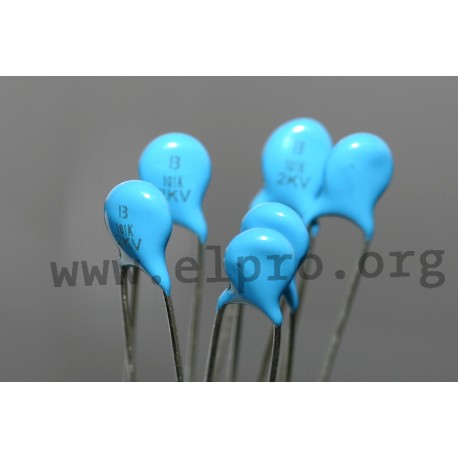

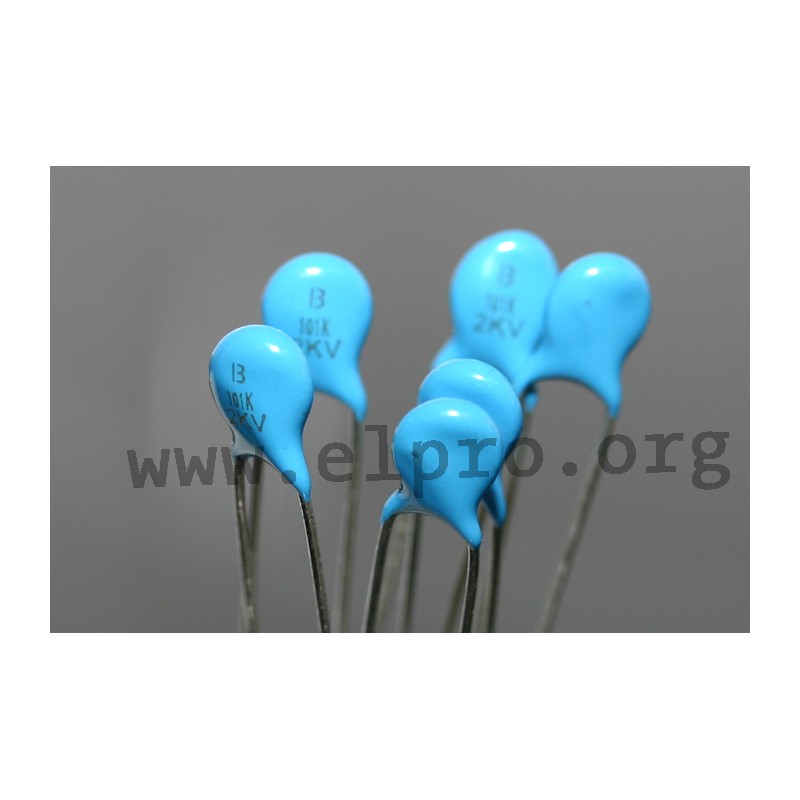

K 100pF 2000V RM5

2000V, pitch: 5.08, 7.5, 10mm

• loose
• rated voltage: 2kV DC
• insulation resistance type 1: 10MΩ
• insulation resistance type 2
20nF: 10MΩ
20nF to 100 nF: 7.5MΩ
• insulation resistance type 3
16V: >100MΩ
25V, 50V: >1MΩ

K_ 2000V

K 100pF 2000V RM5

33559 K 100pF 2000V RM5 3D06B101KL52N 3D06B101KL52N 2000V, pitch: 5.08, 7.5, 10mm. • loose• rated voltage: 2kV DC• insulation resistance type 1: 10MΩ• insulation resistance type 220nF: 10MΩ20nF to 100 nF: 7.5MΩ• insulation resistance type 316V: >100MΩ25V, 50V: >1MΩ

Specifications

manufacturer
Manufacturer's name 3D06B101KL52N
Material Y5P
Nominal voltage [V] 2000
Pitch [mm] 5,08
Tolerance [%] ±10
Capacity [pF] 100

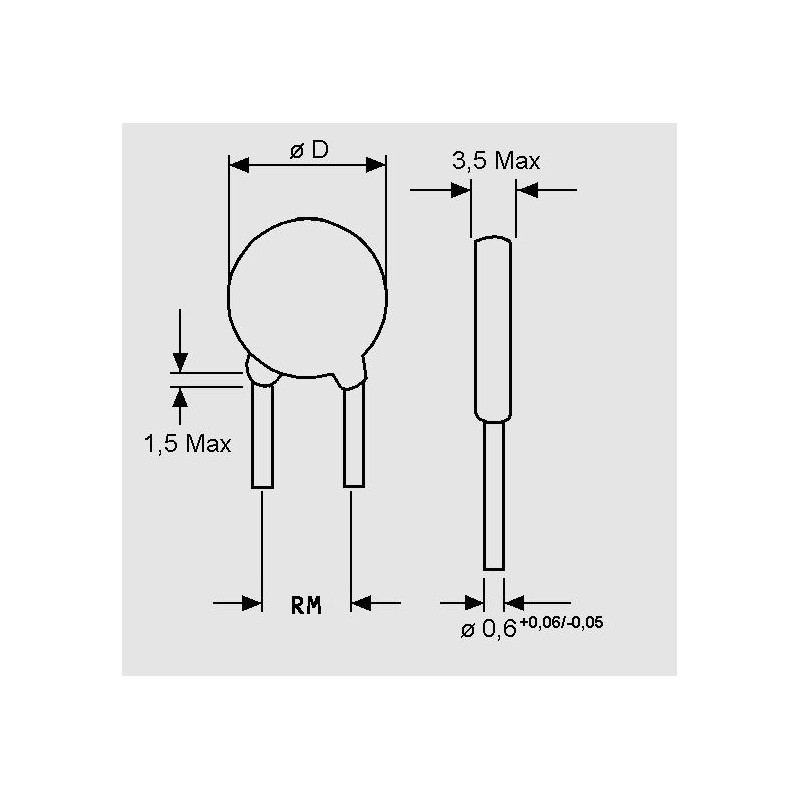

D [mm] 5,5

Unit price

0,047 €

Stock: 1059
Next incoming goods:
CW 03/2025
2000 units

Further delivery:
CW 21/2025

Minimum order quantity 1 to 59 units or multiples of 100 plus 0 to 59 .
