RM85-5021-25-1012

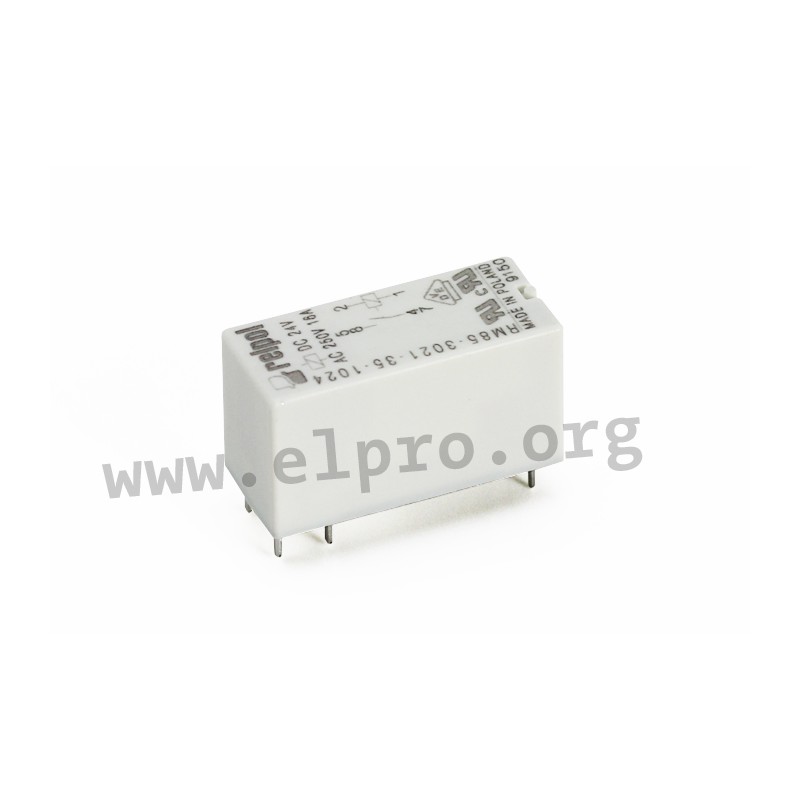

Relpol PCB relay series RM85

Relays in a 29x12,7x15,7mm housing with 16A and 1x normally open contact. These devices comply with EN60335-1 as well as insulation class F and are suitable for PCB mounting. They have a reinforced insulation and a switching capacity of up to 4000VA. We offer the following types of this Relpol series: RM85-2021-35-1012, RM85-2021-35-1024, RM85-3021-35-1012, RM85-3021-1024, RM85-5021-25-1012 and RM85-5021-25-1024.

  • contact: 1x normally open
  • rated current: 16A
  • maximal switching capacity: 4000VA
  • operating temperature: -40 to +85°C
  • weight: 14g

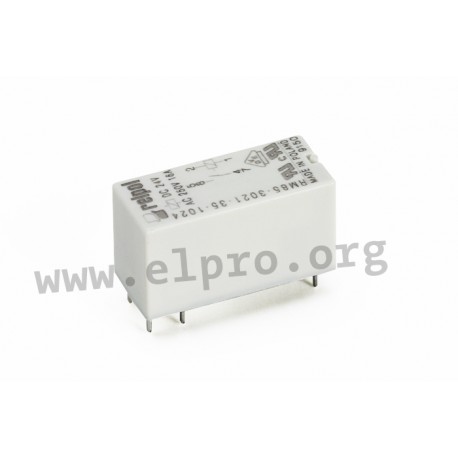

RM85-5021-25-1012, Relpol PCB relays, 16A, SPST, RM85 series

RM85-5021-25-1012

113654 RM85-5021-25-1012 RM85-5021-25-1012 Relpol PCB relay series RM85. Relays in a 29x12,7x15,7mm housing with 16A and 1x normally open contact. These devices comply with EN60335-1 as well as insulation class F and are suitable for PCB mounting. They have a reinforced insulation and a switching capacity of up to 4000VA. We offer the following types of this Relpol series: RM85-2021-35-1012, RM85-2021-35-1024, RM85-3021-35-1012, RM85-3021-1024, RM85-5021-25-1012 and RM85-5021-25-1024. contact: 1x normally open rated current: 16A maximal switching capacity: 4000VA operating temperature: -40 to +85°C weight: 14g

Specifications

manufacturer
Manufacturer's name RM85-5021-25-1012
Data Sheet

Unit price

1,78 €

Stock: 1210
Further delivery:
CW 15/2025

Minimum order quantity 10 units or
multiples of 10.
