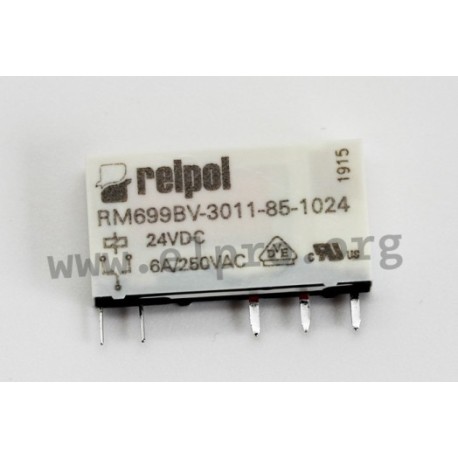

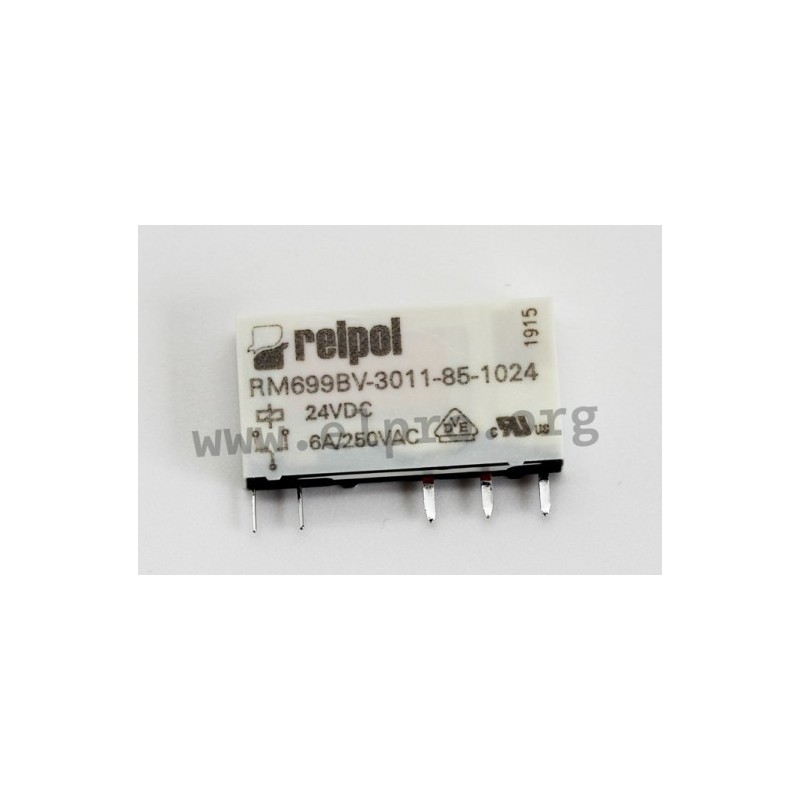

RM699BV-2011-85-1012

Relpol PCB relay series RM699B

Miniature relays with a low cover width (5mm) for direct PCB mounting (vertical) and with the contact form SPST (1 form C). These relays are in compliance with EN 60529 (IP67) and EN 61810-7 (RTIII). Furthermore, they are sealed for soldering and cleaning. We offer the various types of this Relpol series.

  • contact: SPST
  • minimal switching current RM699BV30_: 100mA
  • minimal switching current RM699BV32_: 10mA
  • maximal switching voltage RM699BV30_: 400V AC / 250V DC
  • maximal switching voltage RM699BV32_: 30V AC/ 36V DC
  • minimal creepage/clearance: 6/8mm
  • typical operate/release time: 8/6ms
  • testing voltage coil/contact: 4000V AC
  • testing voltage contact/contact: 1000V AC
  • mechanical lifetime: 107 operations
  • electrical lifetime (AC1): 3 x 104 operations
  • operating temperature: -40 to +85°C
RM699BV-2011-85-1012, Relpol PCB relays, 6A, 1 changeover contact, RM699B series

RM699BV-2011-85-1012

247668 RM699BV-2011-85-1012 RM699BV-2011-85-1012 Relpol PCB relay series RM699B. Miniature relays with a low cover width (5mm) for direct PCB mounting (vertical) and with the contact form SPST (1 form C). These relays are in compliance with EN 60529 (IP67) and EN 61810-7 (RTIII). Furthermore, they are sealed for soldering and cleaning. We offer the various types of this Relpol series. contact: SPST minimal switching current RM699BV30_: 100mA minimal switching current RM699BV32_: 10mA maximal switching voltage RM699BV30_: 400V AC / 250V DC maximal switching voltage RM699BV32_: 30V AC/ 36V DC minimal creepage/clearance: 6/8mm typical operate/release time: 8/6ms testing voltage coil/contact: 4000V AC testing voltage contact/contact: 1000V AC mechanical lifetime: 107 operations electrical lifetime (AC1): 3 x 104 operations operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name RM699BV-2011...
Coil resistance [Ω] 848
Rated current [A] 6
Nominal voltage [V] 12
Response voltage [V] 9
Nominal capacity [mW] 170
Data Sheet

Unit price

2,19 €

Stock: 0
Further delivery:
CW 33/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
