RM51-3011-85-1006

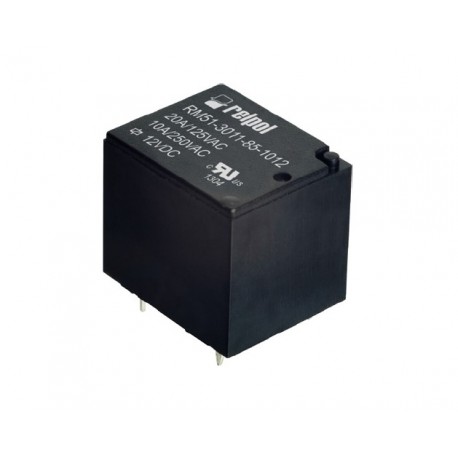

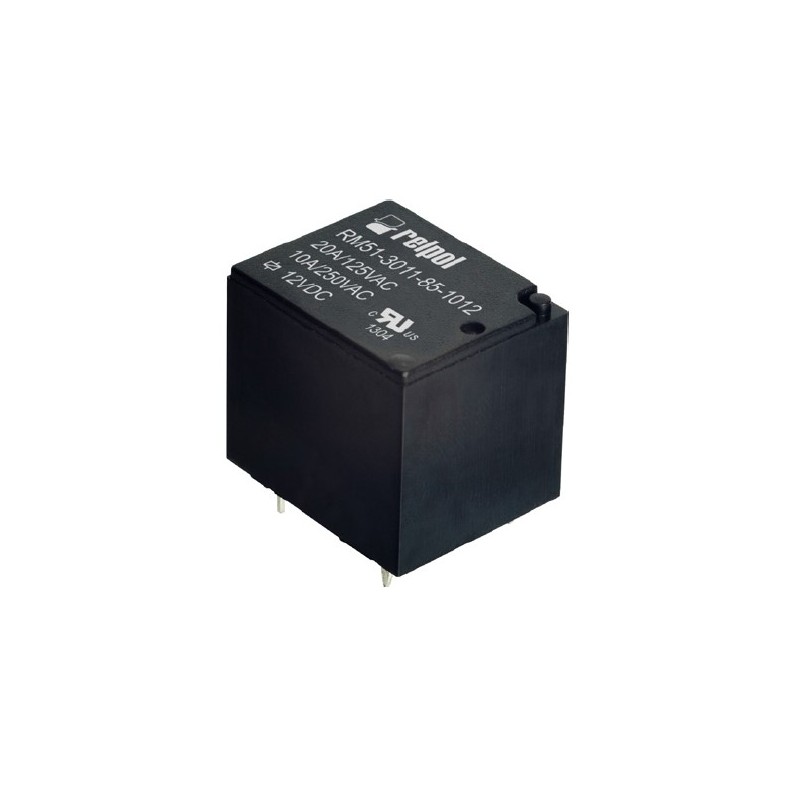

Relpol PCB relay series RM51

Relays in a compact housing (IP67) with solder terminals, 1x changeover contact and a high switching capacity. These devices are suitable for PCB mounting and comply with RTIII as well as insulation class F. We offer the following types of this Relpol series: RM51-3011-85-1003, RM51-3011-85-1005, RM51-3011-85-1006, RM51-3011-85-1009, RM51-3011-85-1012, RM51-3011-85-1024 and RM51-3011-85-1048.

  • contact: 1x changeover contact (SPST)
  • rated current: 10A
  • maximal switching capacity: 3000VA
  • operating temperature: -40 to +85°C
  • weight: 10g

RM51-3011-85-1006

113670 RM51-3011-85-1006 RM51-3011-85-1006 Relpol PCB relay series RM51. Relays in a compact housing (IP67) with solder terminals, 1x changeover contact and a high switching capacity. These devices are suitable for PCB mounting and comply with RTIII as well as insulation class F. We offer the following types of this Relpol series: RM51-3011-85-1003, RM51-3011-85-1005, RM51-3011-85-1006, RM51-3011-85-1009, RM51-3011-85-1012, RM51-3011-85-1024 and RM51-3011-85-1048. contact: 1x changeover contact (SPST) rated current: 10A maximal switching capacity: 3000VA operating temperature: -40 to +85°C weight: 10g

Specifications

manufacturer
Manufacturer's name RM51-3011-85-1006
Data Sheet

Unit price

0,878 €

Stock: 200
Further delivery:
CW 17/2025

Minimum order quantity 25 units or
multiples of 25.
