> Passive elements>Relays>Electromechanical relays>Relpol PCB relays, 6A, 1 changeover contact, RM40B series>RM40B-2021-85-1048

Manufacturers

RM40B-2021-85-1048

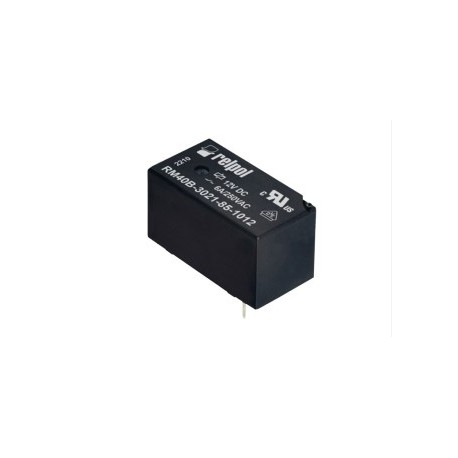

Relpol PCB relay series RM40B

Relays in a 20x10x10,6mm housing with 6A and 1 changeover contact. These components have a low coil power (0,2W) and are suitable for PCB mounting. They are suitable for high loads of up to 10A / 120V AC and comply with insulation class F (155°C), protection type IP50 as well as relay protection class RTIII (EN60810-7). We offer various types of this Relpol series.

  • rated current: 6A
  • rated voltage: 250V AC
  • contact: SPST
  • maximal switching current: 8A
  • operating temperature: -40 to +85°C
  • weight: 4,6g
RM40B-2021-85-1048, Relpol PCB relays, 6A, 1 normally open contact, RM40B series

RM40B-2021-85-1048

247683 RM40B-2021-85-1048 RM40B-2021-85-1048 Relpol PCB relay series RM40B. Relays in a 20x10x10,6mm housing with 6A and 1 changeover contact. These components have a low coil power (0,2W) and are suitable for PCB mounting. They are suitable for high loads of up to 10A / 120V AC and comply with insulation class F (155°C), protection type IP50 as well as relay protection class RTIII (EN60810-7). We offer various types of this Relpol series. rated current: 6A rated voltage: 250V AC contact: SPST maximal switching current: 8A operating temperature: -40 to +85°C weight: 4,6g

Specifications

manufacturer
Manufacturer's name RM40B-2021-85-1048
Nominal voltage [V DC] 48
Coil resistance [Ω] 11520
Rated current [A] 6
Nominal capacity [W] 0,2
Data Sheet

Unit price

2,79 €

Stock: 0
Further delivery:
CW 23/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
