> Passive elements>Relays>Electromechanical relays>Relpol PCB relays, 6A, 1 normally open contact, RM40B series>RM40B-3021-85-1024

Manufacturers

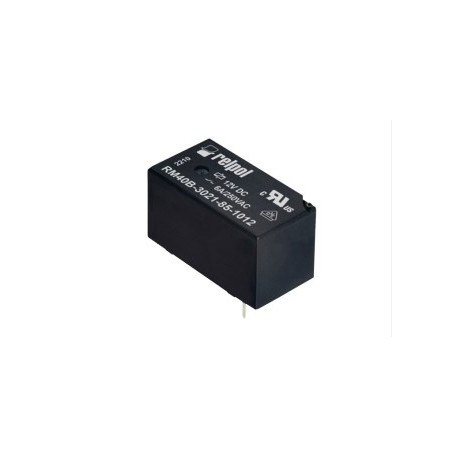

RM40B-3021-85-1024

Relpol PCB relay series RM40B

Relays in a 20x10x10,6mm housing with 6A and 1 SPST-NO contact. These components are suitable for PCB mounting as well as for high loads of up to 10A / 120V AC. They have a low coil power (0,2W) and comply with IP50, relay protection class RTIII (EN60810-7) as well as insulation class F (155°C). We offer various types of this Relpol series.

  • rated current: 6A
  • rated voltage: 250V AC
  • contact: SPST-NO
  • maximal switching current: 8A
  • operating temperature: -40 to +85°C
  • weight: 4,6g
RM40B-3021-85-1024, Relpol PCB relays, 6A, 1 normally open contact, RM40B series

RM40B-3021-85-1024

244342 RM40B-3021-85-1024 RM40B-3021-85-1024 Relpol PCB relay series RM40B. Relays in a 20x10x10,6mm housing with 6A and 1 SPST-NO contact. These components are suitable for PCB mounting as well as for high loads of up to 10A / 120V AC. They have a low coil power (0,2W) and comply with IP50, relay protection class RTIII (EN60810-7) as well as insulation class F (155°C). We offer various types of this Relpol series. rated current: 6A rated voltage: 250V AC contact: SPST-NO maximal switching current: 8A operating temperature: -40 to +85°C weight: 4,6g

Specifications

manufacturer
Manufacturer's name RM40B-3021-85-1024
Nominal voltage [V DC] 24
Coil resistance [Ω] 2880
Rated current [A] 6
Nominal capacity [W] 0,2
Data Sheet

Unit price

2,09 €

Stock: 1000
Further delivery:
CW 23/2025

Minimum order quantity 10 units or
multiples of 10.
