ITS-MS 5030 12V

Red Magnetics electromagnet series ITS-MS

Holding magnets in an enclosed housing with rear mounting holes. These solenoids have a stranded wire connection (min. 200mm) and are fully encapsulated. They have an M3x0,5mm (ITS-MS 20_ / ITS-MS 30_) resp. an M4x0,7mm (ITS-MS 50_) mounting thread and are suitable for a broad range of applications. We offer various types of this Red Magnetics series.

  • rated voltage: 12 to 24V DC
  • rated current: 0,104 to 0,667A
  • rated power: 2,5 to 8W
  • holding force: 20 to 400N

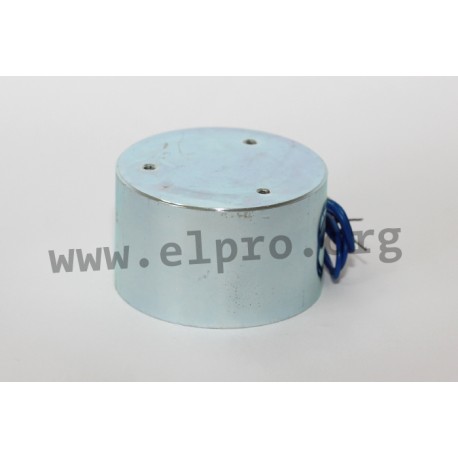

ITS-MS 5030 12V

ITS-MS 5030 12V

32697 ITS-MS 5030 12V ITS-MS5030-12VDC ITS-MS5030-12VDC Red Magnetics electromagnet series ITS-MS. Holding magnets in an enclosed housing with rear mounting holes. These solenoids have a stranded wire connection (min. 200mm) and are fully encapsulated. They have an M3x0,5mm (ITS-MS 20_ / ITS-MS 30_) resp. an M4x0,7mm (ITS-MS 50_) mounting thread and are suitable for a broad range of applications. We offer various types of this Red Magnetics series. rated voltage: 12 to 24V DC rated current: 0,104 to 0,667A rated power: 2,5 to 8W holding force: 20 to 400N

Specifications

manufacturer
Manufacturer's name ITS-MS5030-12VDC
Rated current [mA] 667
Thread M4x0,7
Holding force [kg] 40
Diameter [mm] 50
Nominal capacity [W] 8
Length [mm] 30
Data Sheet

Unit price

10,39 €

Stock: 33
Further delivery:
CW 23/2025
